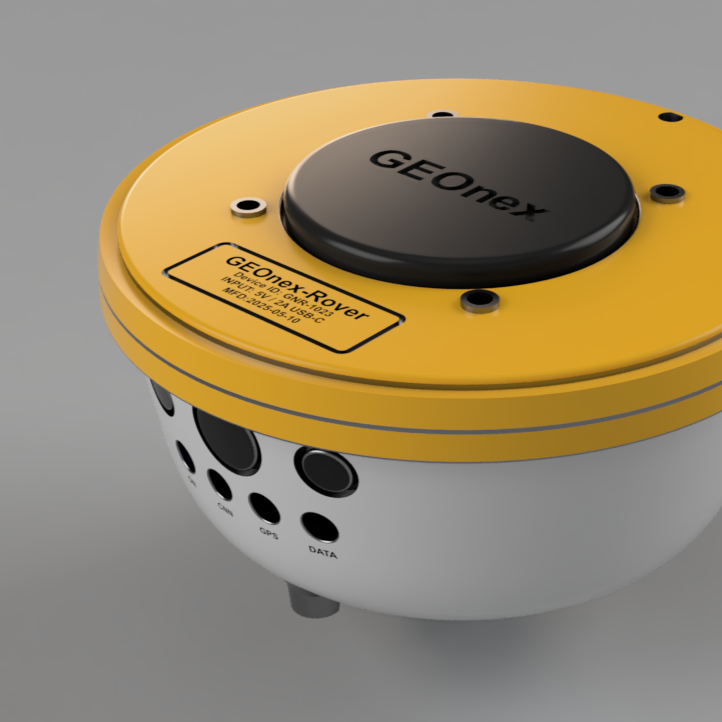

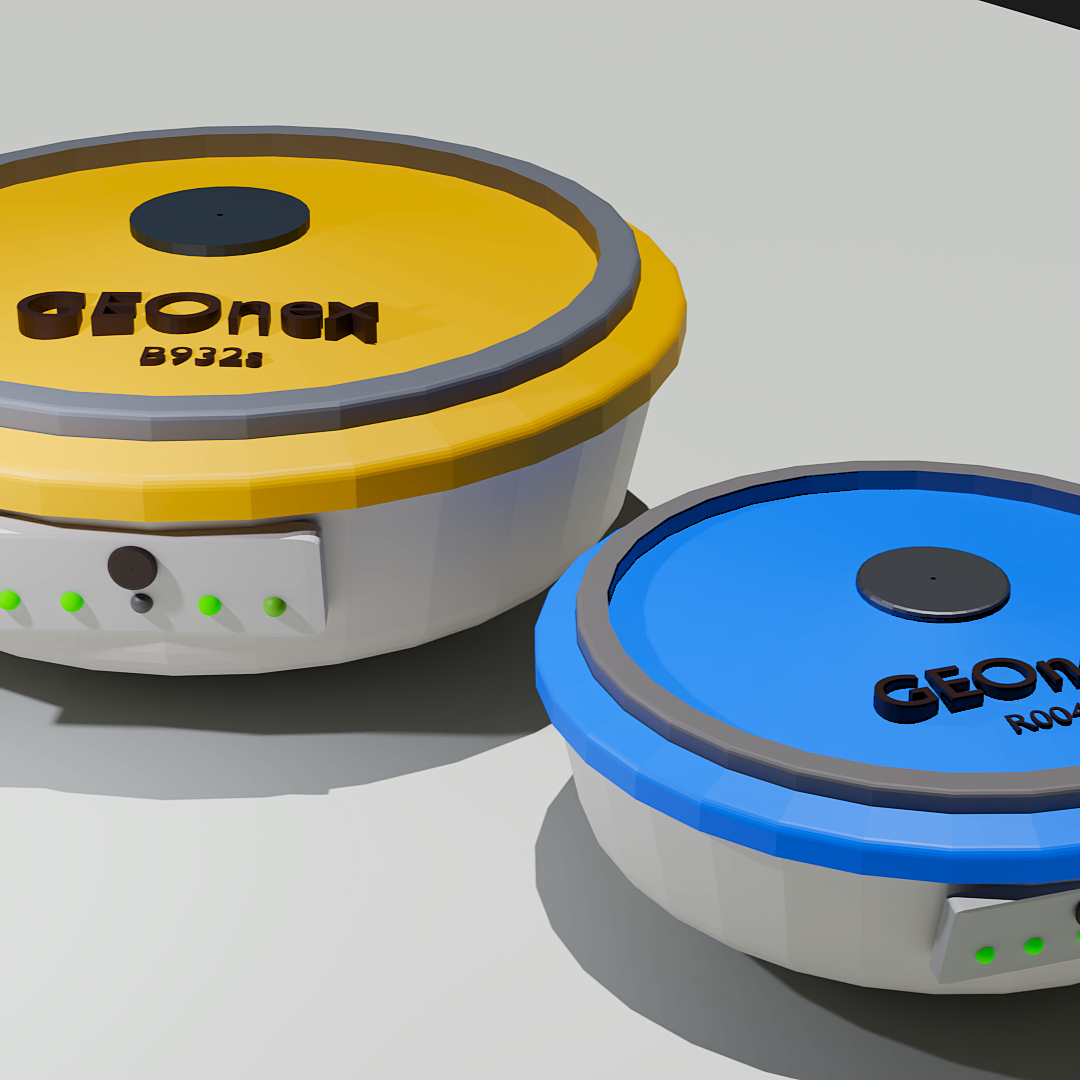

The Smart Surveying Device is an innovative solution addressing the inefficiencies in land surveying, boundary marking, and construction layout tasks. It automates stake placement with high precision, reducing both manual labor and project costs.
To revolutionize land surveying by providing an affordable, automated solution that enhances accuracy and efficiency in surveying and stake out process.
The objective of the Smart Surveying Device is to develop an automated system that takes land coordinates, mapping and places stakes precisely according to preloaded survey data. By addressing the challenges of manual surveying and staking, the device minimizes human error, speeds up layout marking, and reduces overall project costs.
| Component | Unit Price (Rs) | Quantity | Total (Rs) |
|---|---|---|---|
| NEO-M8N GPS Module (Base & Rover) | 3150 | 2 | 6300 |
| ESP32 Dev Board | 1690 | 2 | 3380 |
| LoRa SX1278 Module | 1720 | 2 | 3440 |
| Power Supply (Li-ion Battery/Power Bank) | 890 | 2 | 1780 |
| Enclosure (3D Printed/Acrylic Case) | 2000 | 2 | 4000 |
| MPU-6050 IMU Sensor | 1700 | 1 | 1700 |
| Buzzer | 120 | 2 | 240 |
| Total | 20840 | ||
