MediFlow

Next level of Clinic Management

Digital Prescriptions

Automated Dispensing

Secure Patient Data

Learn More

About

About MediFlow

MediFlow is a solution combining a clinic management system for digital prescriptions and patient records with an automated pill dispenser for accurate and efficient medication delivery.

Simplifies workflows for doctors, pharmacists, and nurses, offering secure access controls to protect sensitive medical information. Built on a scalable and secure architecture, it is tailored to meet the evolving needs of modern healthcare facilities.

Hospital Efficiency

Improve hospital efficiency with digital records & prescriptions

Error Reduction

Automate pill dispensing to reduce human error

Secure Access

Ensure secure & accessible patient medical history

Solution

Solution Architecture

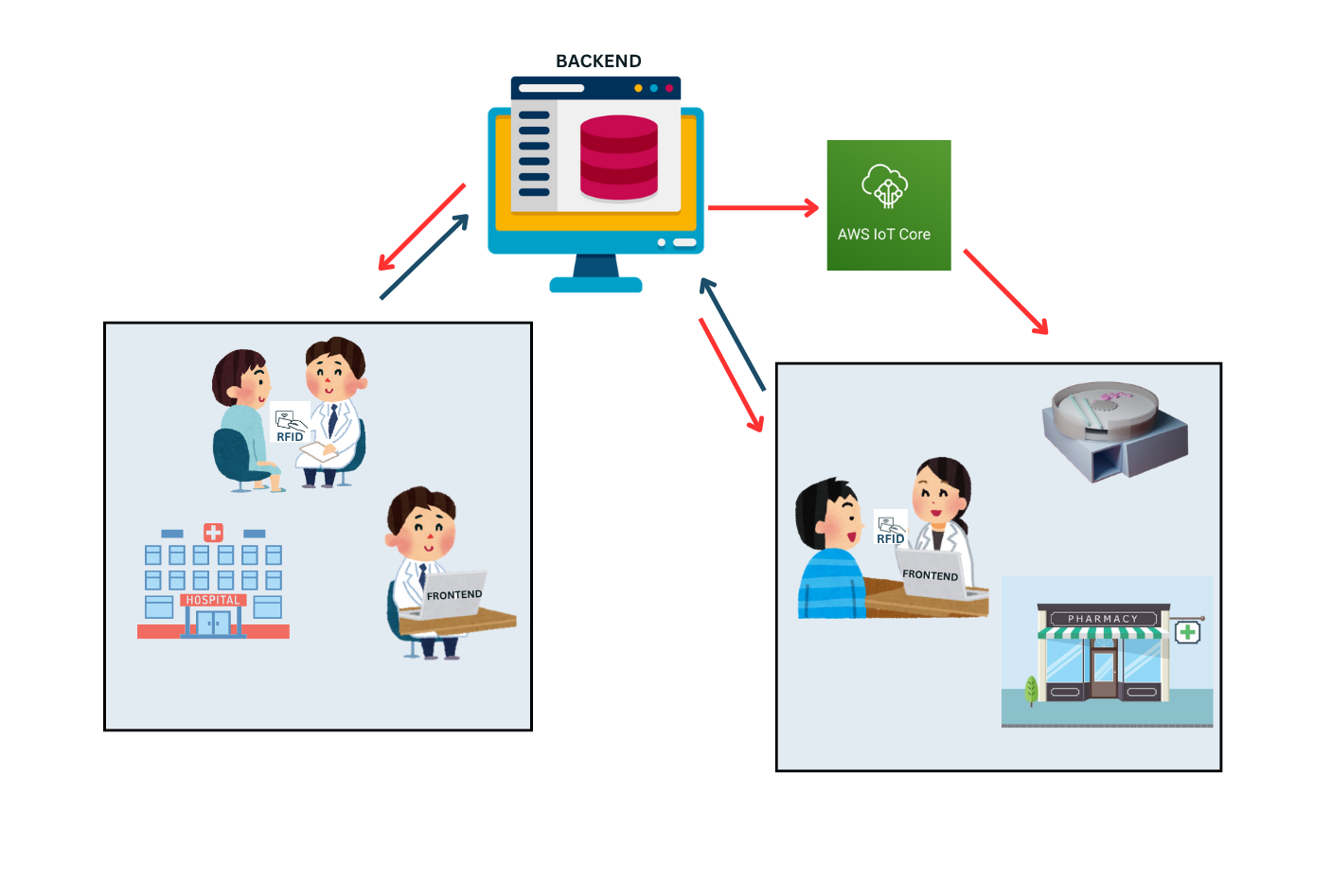

MediFlow Solution Architecture

Integrated Healthcare Solution

MediFlow streamlines healthcare by integrating clinics, pharmacies, and an automated pill dispenser. Doctors enter prescriptions through a frontend system, linking them to the patient’s RFID tag. This data is securely stored in the backend. Pharmacists access the prescription via their frontend, while the backend communicates with AWS IoT Core to send instructions to the pill dispenser, which then automatically dispenses the correct medication.

Features

Why Choose MediFlow?

Digital Prescriptions

Doctors can create and send prescriptions digitally, reducing paperwork and errors.

Automated Pill Dispensing

An automated system to dispense pills accurately, reducing human error and improving efficiency.

Secure Patient Records

Secure and centralized storage of patient medical records for easy access and management.

Pharmacy Integration

Seamless integration with pharmacies for real-time prescription processing and dispensing.

RFID Patient ID

Use RFID technology for quick and accurate patient identification, enhancing efficiency and reducing errors.

Advanced Security

Advanced security measures to protect patient data and ensure compliance with healthcare regulations.

System

System Design

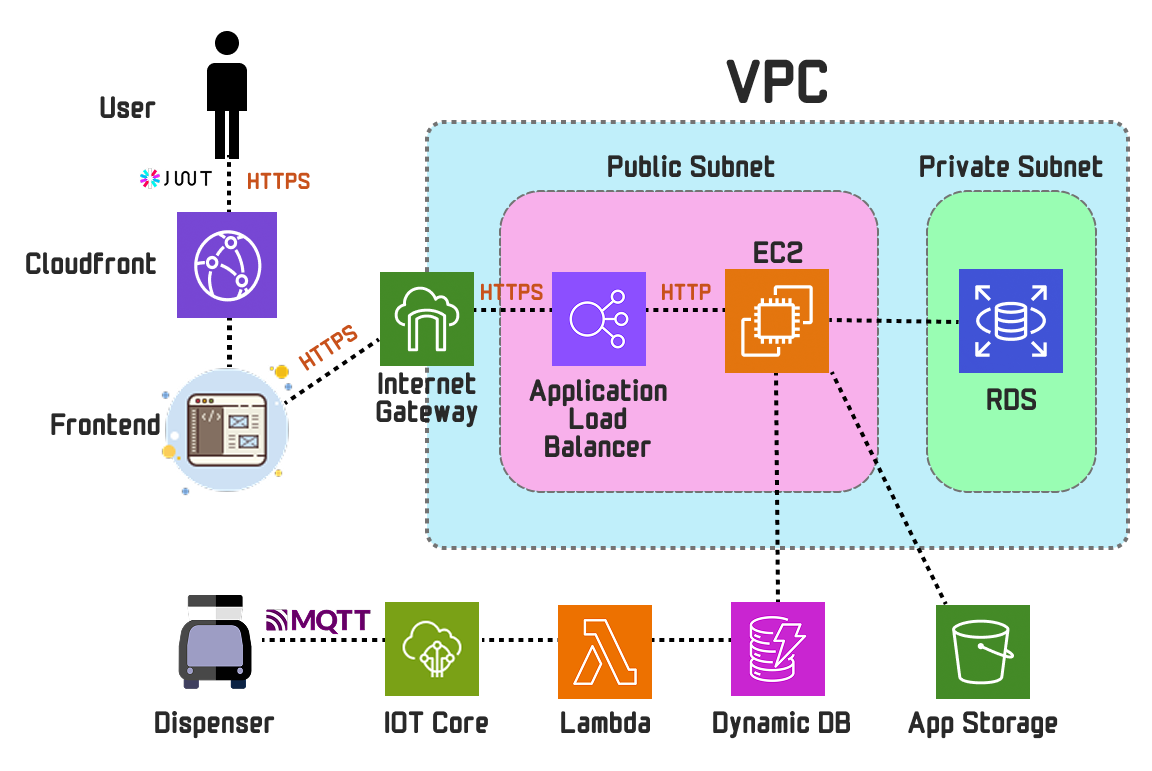

MediFlow System Design

Cloud Architecture

CloudFront for content delivery
VPC with public and private subnets
EC2 instances for application hosting
RDS for secure database management
IoT Core for dispenser connectivity
Lambda & DynamoDB for serverless operations
Application Load Balancer for traffic management

Hardware

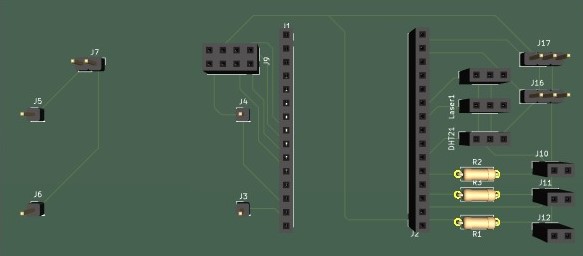

PCB Design

Our custom PCB design forms the heart of the automated dispensing system, featuring precision motor control, RFID integration, and sensor management for reliable medication dispensing.

ESP32 Microcontroller

Dual-core processor with WiFi and Bluetooth connectivity

Motor Control

Stepper motor driver DC 43A H-bridge for accurate dispensing

IoT Integration

Real-time connectivity with cloud services

RFID Module

Secure patient identification system withUSB RFID reader

Laser Receiver & Transmitter

Used KY008 Laser Module for accurate pill counting during dispensing operations

DHT11 Sensor

Monitors temperature and humidity of pill storage for optimal conditions

PCB Design

Videos

Demonstrations

Hardware Prototype Demo

Demonstration of the automated dispensing hardware

3D Design Visualization

3D visualization of the complete system design

Quality

Testing

We follow a rigorous testing process to ensure the MediFlow system is reliable, secure, and error-free. Our testing methodologies include:

Unit Testing

Integration Testing

User Acceptance

Performance Testing

Investment

Budget

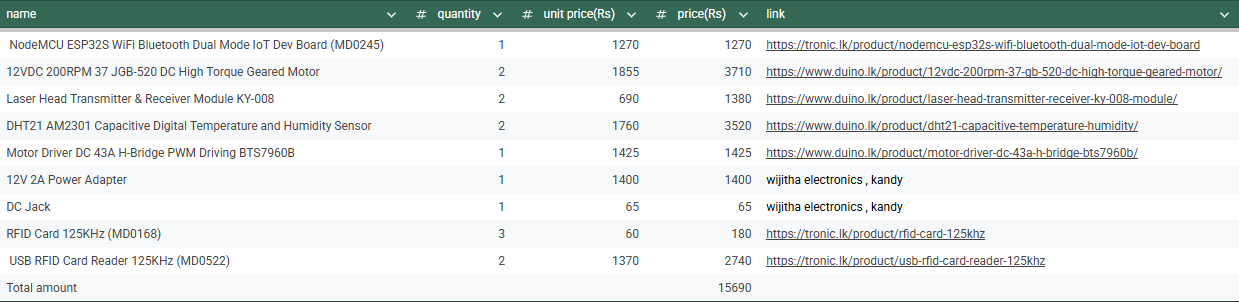

MediFlow Project Budget

Comprehensive budget breakdown showing cost analysis for hardware components, development resources, and implementation phases.

Team

Meet DEVGRU

Supun Dulara

Supun Dulara

E/20/087

Ishara

Ishara Ekanayaka

E/20/094

Sahith Hasantha

Sahith Hasantha

E/20/131

Kusal Jyawardhana

Kusal Jayawardhana

E/20/179

Get In Touch

University of Peradeniya, Sri Lanka

e20(087/094/131/179)@eng.pdn.ac.lk
