Welcome to PlantPulse
Revolutionizing Agriculture
Who We Are
Revolutionizing Agriculture
Sustainable Growth, Simplified. Embrace the power of innovation with our system that empowers you to grow healthy, high-quality produce with minimal environmental impact.
- Sustainable Practices: We prioritize the use of sustainable farming methods, reducing the reliance on harmful chemicals and minimizing the carbon footprint of agricultural activities
- Innovative Technology: Our system integrates state-of-the-art technology, such as IoT and AI, to monitor environmental factors
- Support for Farmers: We are dedicated to supporting farmers with easy-to-use tools and data-driven insights
Features
Features Our System Offers
Hardware Modules
Modular Design for Maximum Flexibility and Scalability

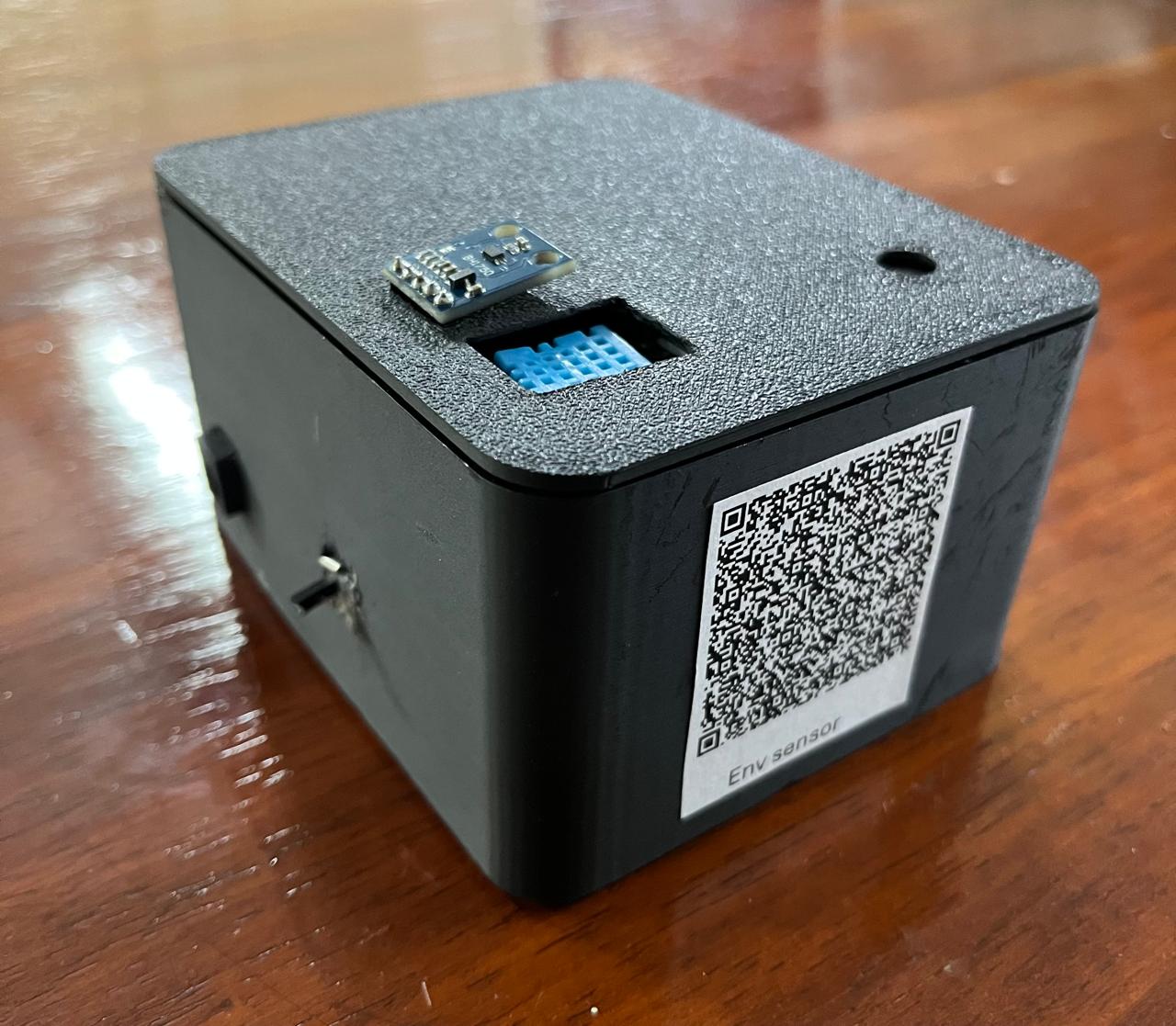

Environmental Sensor Module
Monitors critical environmental conditions for optimal plant growth
Key Measurements:
- Temperature: Ambient air temperature monitoring
- Humidity: Relative humidity levels
- Light Intensity: Photosynthetically active radiation
Components:
- DHT22 Temperature & Humidity Sensor
- GY-30 Light Intensity Sensor
- ESP32 Microcontroller
- Battery Management System (BMS)
- Weatherproof Enclosure

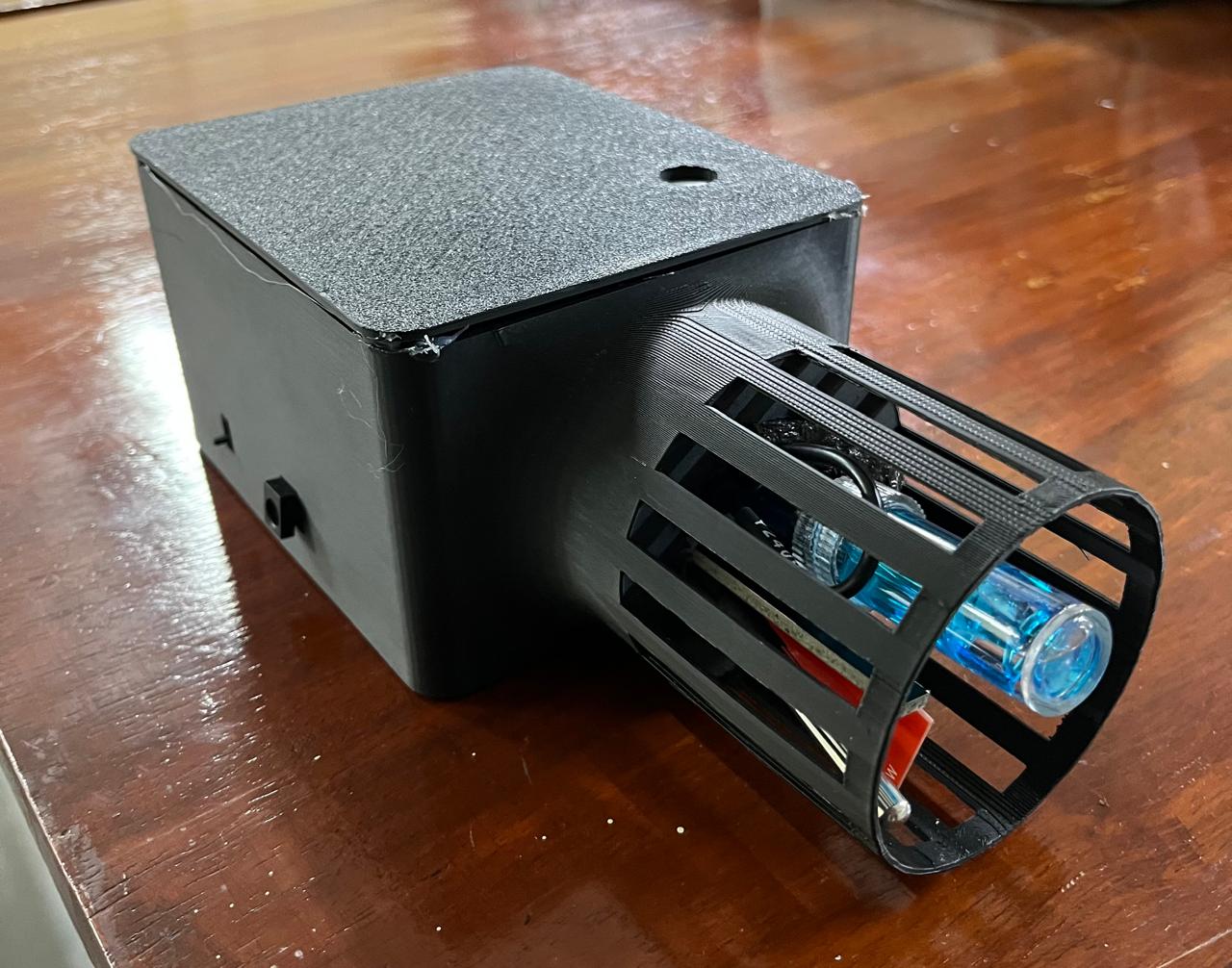

Water Sensor Module
Comprehensive water quality and level monitoring system
Key Measurements:
- Water Temperature: Nutrient solution temperature
- pH Level: Acidity/alkalinity monitoring
- Water Level: Reservoir level detection
- EC (Conductivity): Nutrient concentration
Components:
- pH4502C pH Sensor
- MD0591 Turbidity Sensor
- PSR-22-B2 Water Level Sensor
- ESP32 Microcontroller
- Battery Management System (BMS)

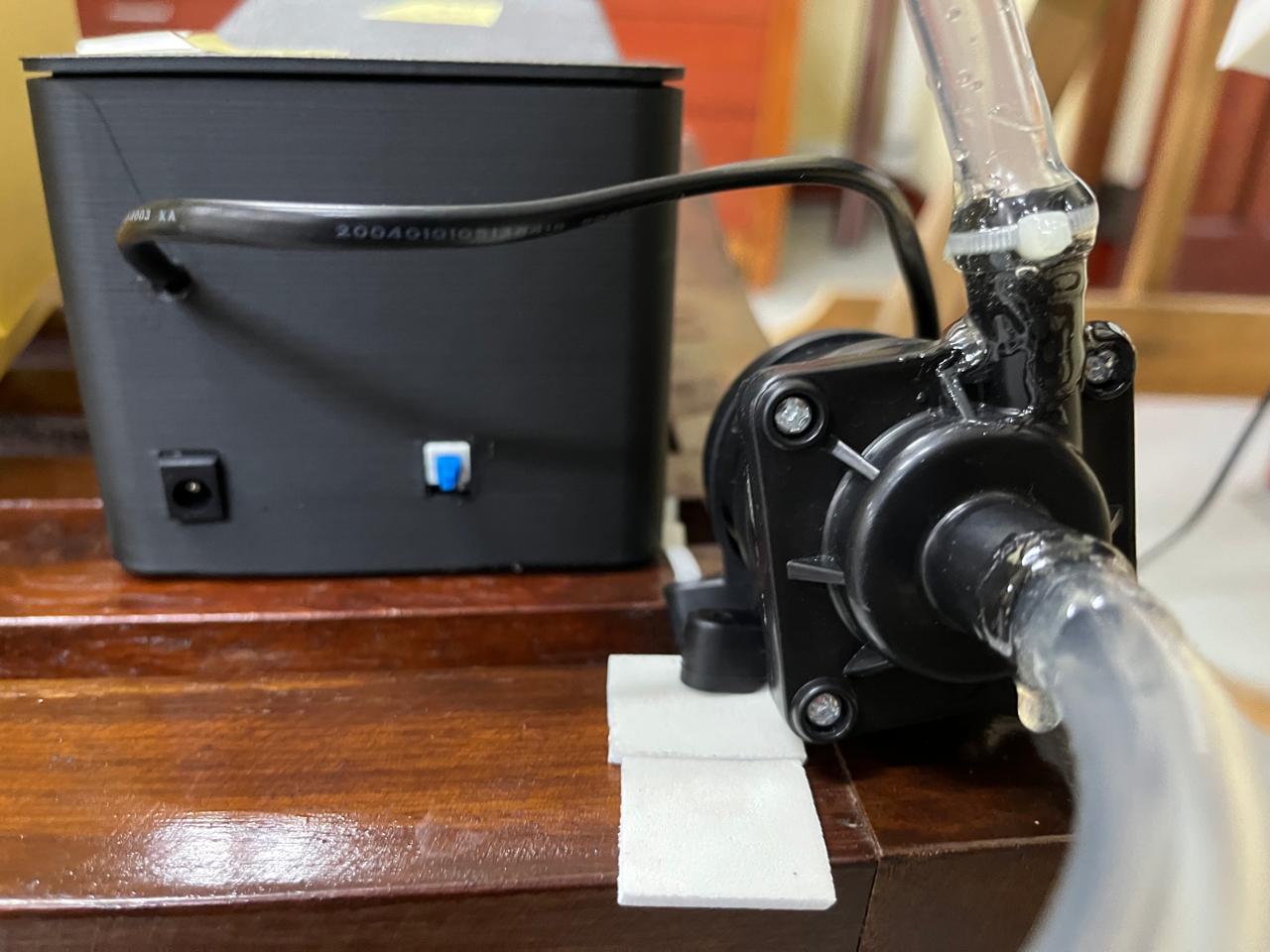

Controller Module
Automated control system for nutrient delivery and water management
Key Functions:
- Fertilizer Dispensing: Precise nutrient delivery
- pH Control: Automatic pH adjustment
- Water Management: Excess water disposal
- Auto Refill: Low water level response
Components:
- Fertilizer Dispensing System
- Water Pumps (3 units)
- Control Valves & Actuators
- ESP32 Control Unit
- Battery Management System (BMS)
Modular System Benefits
Scalability
Add or remove modules based on your specific needs and farm size
Easy Maintenance
Individual modules can be serviced independently without system downtime
Cost Effective
Upgrade specific modules as needed without replacing the entire system
Flexible Deployment
Modules can be configured for different crops, seasons, and user preferences
System Demonstration
Watch PlantPulse in action - See how our automated hydroponic system revolutionizes modern agriculture
Live Monitoring
Real-time sensor data visualization
Mobile Control
Complete system control from mobile app
Automation
Fully automated nutrient delivery system

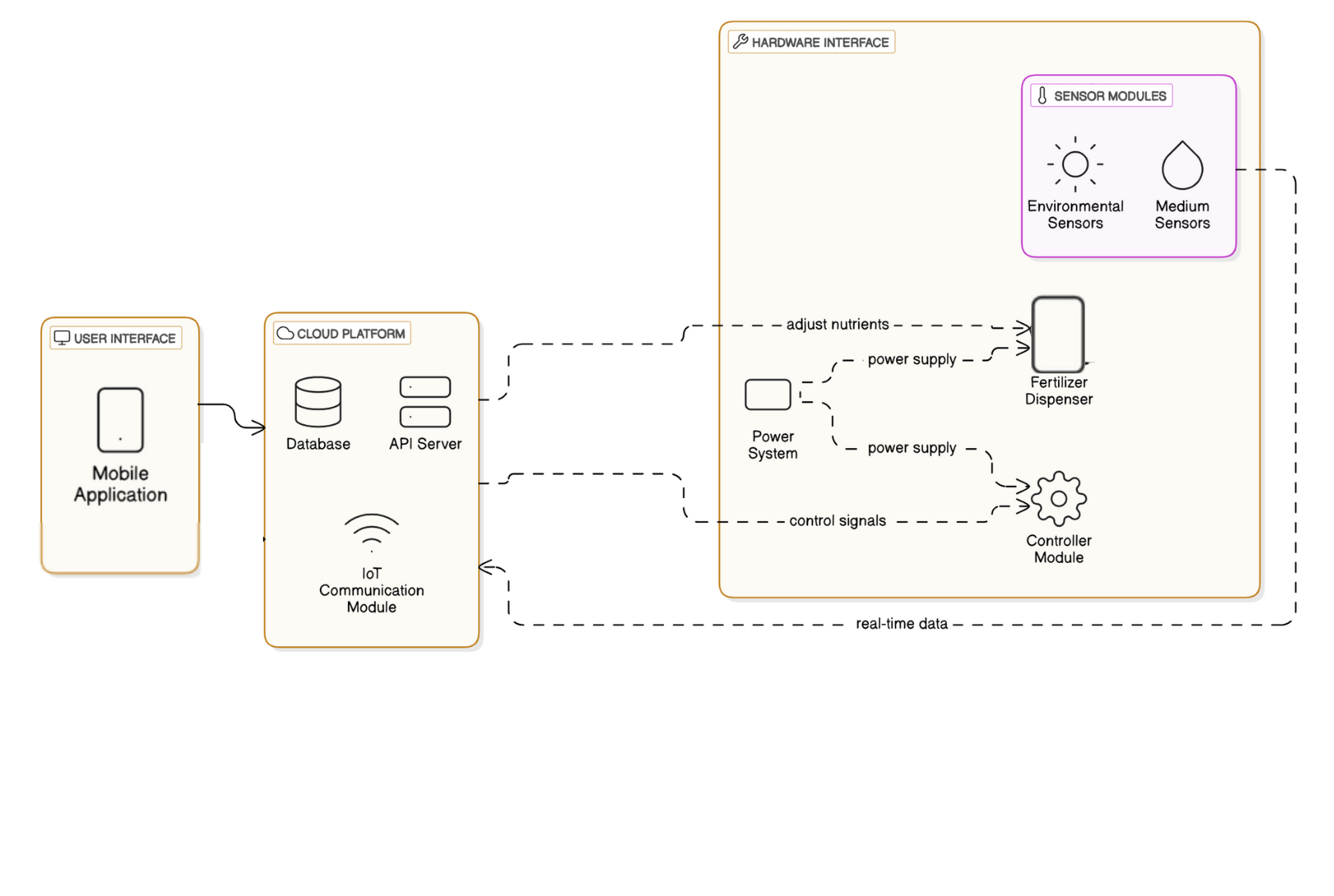

System Architecture
High-Level Overview of PlantPulse System
System Components
User Interface
Mobile application for monitoring and controlling the entire PlantPulse system remotely
Cloud Platform
Database and API server for data storage, processing, and real-time communication
IoT Communication
Wireless communication module enabling real-time data transmission and control signals
Sensor Modules
Environmental sensors (light, temperature, humidity) and medium sensors (pH, turbidity, water level)
Control System
Controller module and fertilizer dispenser with automated nutrient delivery capabilities
Power System
Integrated power supply system with BMS ensuring continuous operation of all hardware components
System Data Flow
Sensor Data Collection
Environmental and medium sensors gather real-time data
Data Transmission
IoT module sends data to cloud platform
Cloud Processing
Database stores data, API processes requests
Mobile Interface
User monitors system status and sends commands
Control Signals
Commands sent to controller and fertilizer dispenser
Automated Response
System adjusts nutrients and environmental conditions
Our Impact
We work hard every day to make life of our clients easier
Sustainability
Reduced water use, fewer pesticides
Feasibility
Scalable for urban and rural settings
Innovation
Automation and data-driven farming
Low Maintenance
Self-regulating systems reduce the need for frequent manual intervention
Customization
Adjustable settings tailored for different crops, seasons, and user preferences
Our Team
Our Supervisors
Detailed Budget
| Item | Quantity | Unit Cost (LKR) | Total (LKR) |
|---|---|---|---|
| ESP32 | 4 | 1,500 | 6,000 |
| PH Sensor: pH4502C | 1 | 6,000 | 6,000 |
| DHT22 Sensor | 1 | 400 | 400 |
| Turbidity Sensor: MD0591 | 1 | 2,500 | 2,500 |
| Water Level Sensor: PSR-22-B2 | 1 | 750 | 750 |
| Light Sensor: GY-30 | 1 | 350 | 350 |
| Water Pumps | 3 | 1,600 | 4,800 |
| 3D Printing Components | - | - | 16,000 |
| Mounting Structures | 4 | 500 | 2,000 |
| Cabling & Connectors | - | 1,000 | 1,000 |
| LiPo Batteries 2200mAh | 2 | 1,000 | 2,000 |
| Database/Cloud (1 month) | - | 30/GB | 3,000 |
| Power Supply & Regulators | 4 | 800 | 3,200 |
| Control Valves & Actuators | 6 | 1,200 | 7,200 |
| Fertilizer Dispensing System | 1 | 5,000 | 5,000 |
| Water Reservoirs & Containers | 3 | 2,000 | 6,000 |
| Additional Electronic Components | - | - | 4,000 |
| Tubing & Fittings | - | - | 2,500 |
| Enclosures & Protective Covers | 5 | 600 | 3,000 |
| Testing & Calibration Equipment | - | - | 1,500 |
| Total Project Cost: | LKR 76,000 | ||
