XAI-Driven Zero-Trust Anomaly Detection for Encrypted Traffic

01 Abstract

Modern cybersecurity is shifting toward encryption to protect data privacy, but this often blinds traditional Intrusion Detection Systems (IDS) that rely on payload inspection. Concurrently, the rise of cloud computing and remote work has made perimeter-based security obsolete, leading to the adoption of Zero-Trust Architecture (ZTA), which requires continuous verification of every entity.

While Deep Learning models can detect anomalies in encrypted traffic without decryption by analyzing metadata, their "black-box" nature creates a trust deficit that hinders automated policy enforcement. This project proposes a framework integrating Encrypted Traffic Analysis (ETA) with Explainable AI (XAI) using SHAP and Deep Dictionary Learning to provide real-time, human-readable rationales for security decisions.

03 Methodology

The proposed framework utilizes a multi-stage zero-trust pipeline:

🔐 Stage 1 — Encryption & Extraction

Raw PCAP streams are processed through an AES-256-GCM encryption simulator. A hybrid DPKT + NFStream extractor yields 15 CIC-IDS-2017 behavioral features — all from unencrypted metadata (no payload inspection).

🌲 Stage 2 — Decision Tree Pre-Check

A lightweight Decision Tree classifier (entropy criterion, class weight 50:1 attack bias) performs an initial fast check. Flows classified as Normal are forwarded immediately; flagged flows proceed to deep analysis.

🧠 Stage 3 — Deep Dictionary Learning

A two-layer DDL model with ISTA sparse coding learns atomic dictionary representations of normal traffic. Flows with high reconstruction error (exceeding the learned threshold) are classified as anomalous.

💡 Stage 4 — XAI Explanation

For every anomaly, two explanation methods fire: DDL-native per-feature reconstruction error decomposition, and SHAP KernelExplainer perturbation-based attributions — producing human-readable rationales for SOC analysts.

🛡️ Stage 5 — SDN Buffer & Policy

Anomalous flows are held in an OpenFlow-style SDN buffer while the explanation is computed. After analysis: DROP confirmed threats, FORWARD cleared flows. Decisions feed back into the ZTA Policy Engine.

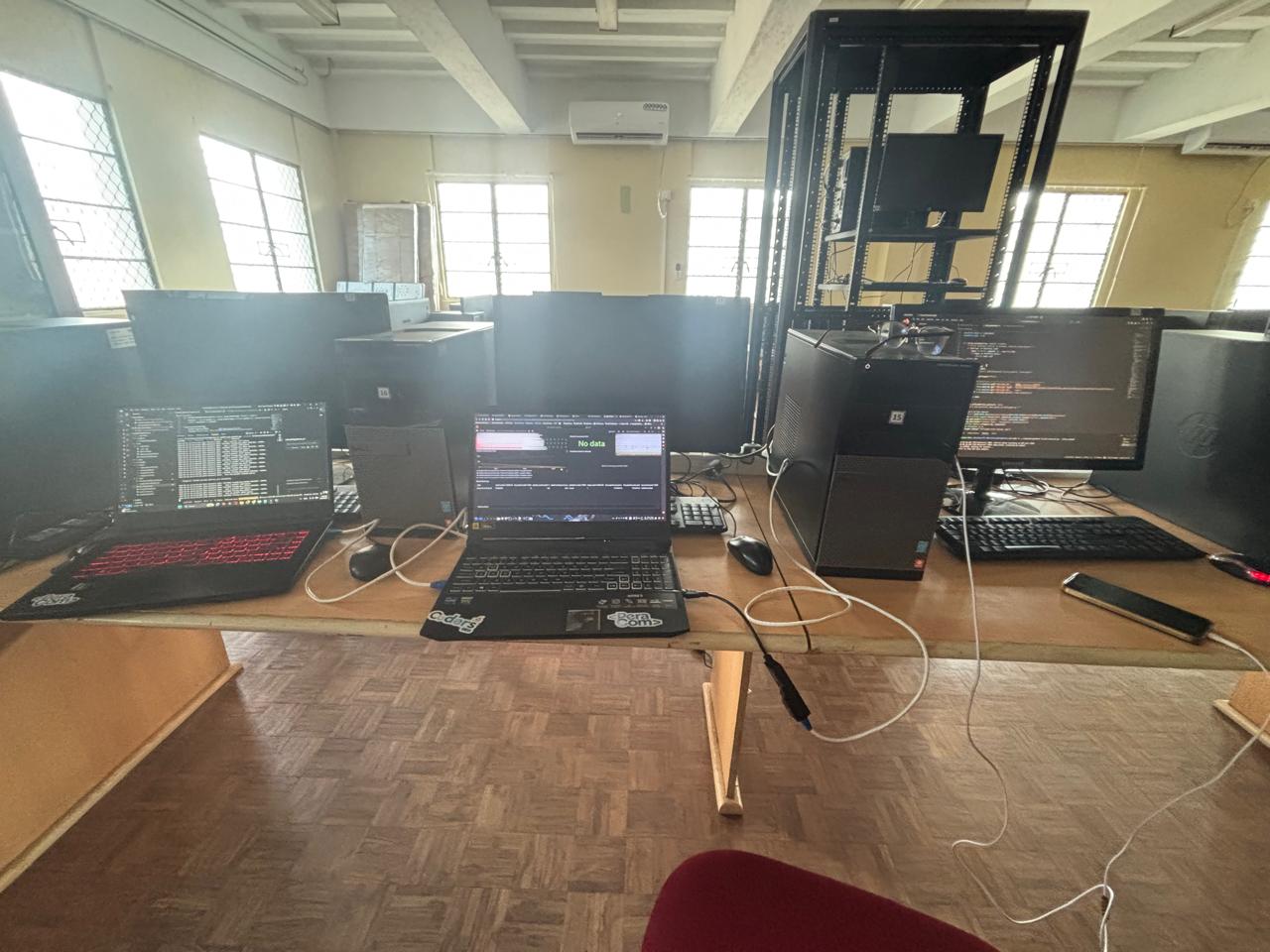

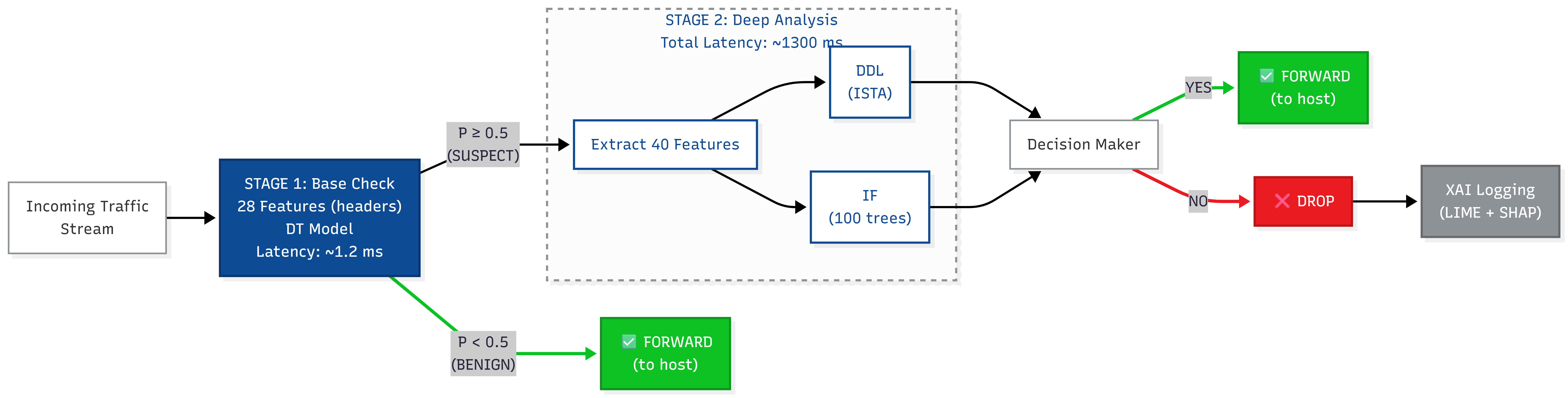

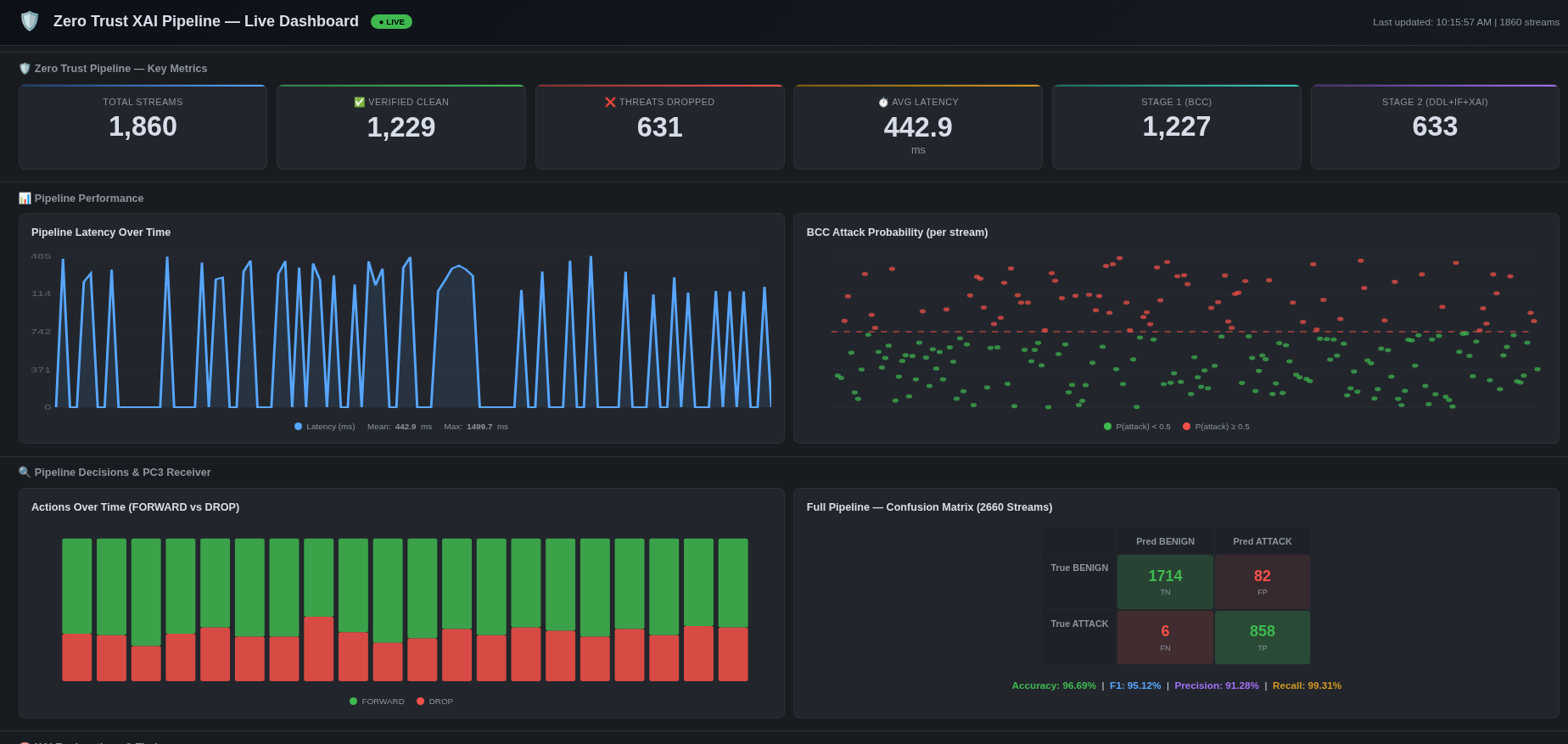

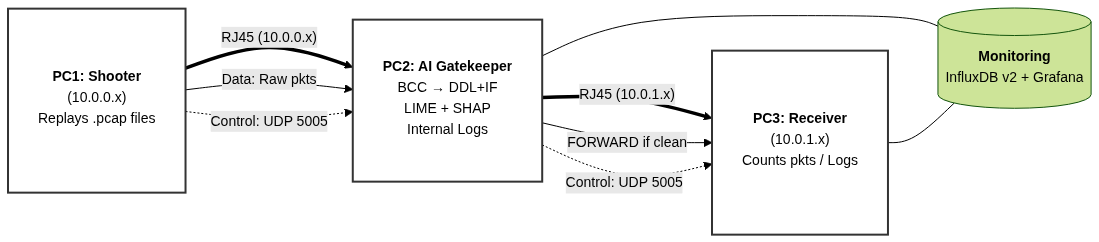

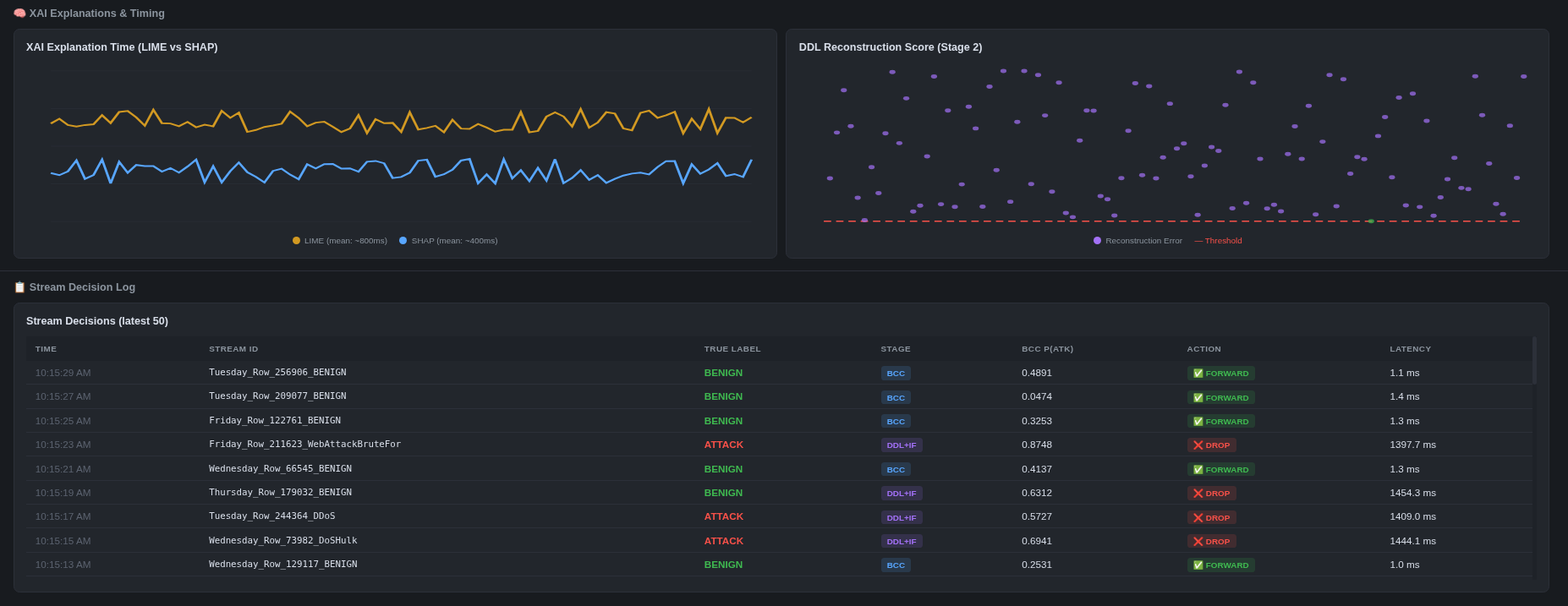

📊 Stage 6 — Dashboard & Logging

A Streamlit dashboard provides real-time visibility into detection events, explanation summaries, and pipeline statistics (TP/TN/FP/FN, latency, throughput).

Feature Sets (CIC-IDS-2017)

BCC v2: 28 features (Stage 1 gatekeeper) | DDL: 40 features (Stage 2, superset of BCC's 28)

Packet Length Variance Fwd Packet Length Max Fwd Header Length Init_Win_bytes_forward Bwd Header Length Total Length of Fwd Packets Init_Win_bytes_backward Bwd Packets/s Flow IAT Min Fwd IAT Min Flow Bytes/s Active Min Bwd IAT Total Flow IAT Max Flow Duration Total Fwd Packets Total Bwd Packets Fwd Packet Length Mean Bwd Packet Length Mean Fwd Packet Length Std Bwd Packet Length Max Flow IAT Mean Flow IAT Std Fwd IAT Total Fwd Packets/s Down/Up Ratio SYN Flag Count RST Flag Count + Bwd Pkt Len Min/Max (DDL) + Fwd/Bwd IAT extras (DDL) + Active Min (DDL)

Directory	Purpose	Status
`BaseCheckClassifier/`	Decision Tree classifier, feature extraction, encryption sim, dashboard	Active
`DDLModel/`	Deep Dictionary Learning anomaly detector (two-layer ISTA)	Active
`XAIExplainer/`	SHAP + DDL-native reconstruction explanation	Active
`SDNBuffer/`	OpenFlow-style SDN flow buffer simulation	Active
`ZeroTrustPipeline/`	Pipeline orchestrator — ties all modules together	Active
`tests/`	Integration tests (27 sub-tests)	Active
`ObsoleteExperiments/`	Archived early experiments (see below)	Archived
`docs/`	This GitHub Pages site	Active

05 Experiments & Evolution

The current DDL-based pipeline is the result of several iterative experiments. Each attempt taught us something that shaped the final design. Below is the complete timeline of approaches tried, their results, and why we moved on.

Jan 2026

Experiment 1 — Semi-Supervised Pseudo-Labeling on BCCC Darknet

Approach: Ensemble of Isolation Forest + Autoencoder for unsupervised anomaly detection on the BCCC Darknet dataset. Pseudo-labels were generated via agreement voting — confidence = 1.0 when both models agreed a sample was anomalous. Top 50 features selected by variance from 467 numeric features.

Results — Pseudo-Labeling

Metric	Value
Accuracy	0.9949
Precision	0.7451
Recall	1.0000
F1-Score	0.8539
ROC-AUC	0.9996
5-Fold CV (ROC-AUC)	0.9991 ± 0.0003

Confusion Matrix: TN=5,006 FP=26 FN=0 TP=76
Dataset: 25,588 samples — only 379 high-confidence anomalies (1.48%), class imbalance ratio 1:66.4

⛔ Why We Moved On

No ground truth: Pseudo-labels are unsupervised — there was no way to validate whether detected "anomalies" were real attacks
Anonymous features: The 50 variance-selected features were unnamed (Feature_123, Feature_045, etc.) — completely uninterpretable for security analysts
Extreme class imbalance: Only 1.48% anomalies (379 / 25,588) making evaluation unreliable
Precision ceiling: ~74.5% precision means ~1 in 4 alerts would be false positives — unacceptable for automated policy enforcement
Dataset mismatch: BCCC Darknet captures darknet traffic, which is less representative of enterprise encrypted traffic than CIC-IDS-2017

Feb 2026

Experiment 2 — Random Forest + SHAP Pipeline on BCCC Darknet

Approach: 3-stage notebook pipeline — (1) IF+AE pseudo-labeling, (2) Random Forest classifier (300 trees, max_depth=15, balanced class weights), (3) SHAP TreeExplainer for explainability. Same BCCC Darknet dataset and 50 anonymous features.

Results — Random Forest + SHAP

Metric	Value
Accuracy	0.9945
Precision	0.7300
Recall	0.9865
F1-Score	0.8391
ROC-AUC	0.9994
5-Fold CV (ROC-AUC)	0.9991 ± 0.0003

Confusion Matrix: TN=5,007 FP=27 FN=1 TP=73
SHAP outputs: bar, beeswarm, waterfall, and dependence plots on anonymous features

⛔ Why We Moved On

Same fundamental issues as Experiment 1 — pseudo-labels, anonymous features, BCCC Darknet
SHAP on anonymous features is meaningless: Explaining that "Feature_045 contributes most to anomaly" tells a SOC analyst nothing actionable
Slightly worse performance: Precision dropped to 73.0%, recall to 98.65% — RF added complexity without improving quality
No integration path: This standalone pipeline had no connection to the zero-trust simulation or SDN policy enforcement
TreeExplainer limitations: Only works with tree-based models — we needed a model-agnostic approach for DDL

Feb 2026

Experiment 3 — Decision Tree on CIC-IDS-2017 (BaseCheckClassifier)

Approach: Switched datasets to CIC-IDS-2017 with 15 hand-selected behavioral features. Trained a Decision Tree (entropy criterion, max_depth=15, 50:1 attack class weight) as a "zero-leak" classifier. Integrated into a full simulation pipeline with encryption, topology simulation, and a Streamlit dashboard.

✅ Key Improvements Over Previous Experiments

Real labeled dataset: CIC-IDS-2017 has proper ground truth labels (Normal / Attack categories)
Interpretable features: All 15 features have meaningful names (Packet Length Variance, Flow Duration, etc.)
Zero-trust simulation: Full integration with encryption, topology, and SDN policy enforcement

⛔ Why It's Not Sufficient Alone

Single-model limitation: A Decision Tree alone cannot capture complex nonlinear attack patterns in encrypted traffic
No deep anomaly detection: DTs rely on axis-aligned splits — they miss subtle distributional shifts that dictionary learning can catch
No built-in explainability: While DTs are inherently interpretable, they don't provide the rich, quantitative explanations needed for automated policy creation
Feature distribution mismatch: When tested on synthetic pcap data, the DT classified everything as Normal due to distribution differences between training and real network data

Feb–Mar 2026

Current — Deep Dictionary Learning + SHAP XAI + SDN Buffer

Approach: Two-layer Deep Dictionary Learning with ISTA sparse coding as the anomaly detection backbone, combined with DDL-native reconstruction decomposition + SHAP KernelExplainer for dual-mode explainability. The Decision Tree serves as a lightweight pre-filter, and an SDN buffer holds suspicious flows during analysis.

✅ Why This Approach Works

Unsupervised + supervised hybrid: DDL trains on normal traffic only (no labeled attacks needed) but uses CIC-IDS-2017's labeled data for evaluation
Named, interpretable features: Explanations reference real network characteristics ("Packet Length Variance is 250x above normal")
Dual explainability: DDL-native provides per-feature reconstruction error; SHAP provides model-agnostic attributions — both give actionable insights
Full zero-trust integration: DT pre-check → SDN buffer → DDL analysis → XAI report → automated policy enforcement
Modular design: Each component (DDLModel, XAIExplainer, SDNBuffer, Pipeline) is independently testable — 27/27 integration tests pass

Side-by-Side Comparison

Aspect	Exp 1: IF+AE	Exp 2: RF+SHAP	Exp 3: DT (CIC)	Current: DDL+XAI
Dataset	BCCC Darknet	BCCC Darknet	CIC-IDS-2017	CIC-IDS-2017
Features	50 anonymous	50 anonymous	15 named	15 named
Labels	Pseudo (unsupervised)	Pseudo (unsupervised)	Ground truth	Ground truth
Core Model	Isolation Forest + AE	Random Forest	Decision Tree	DDL (ISTA)
Explainability	None	SHAP (anonymous)	Inherent (DT rules)	DDL-native + SHAP
Zero-Trust Integration	No	No	Yes (DT only)	Yes (full pipeline)
SDN Buffer	No	No	No	Yes
Precision	0.7451	0.7300	0.875 (BCC) / 0.699 (DDL)	0.9363 (full pipeline)
Recall	1.0000	0.9865	0.999 (BCC / Sandaru data)	0.4537 (DDL standalone)
FPR	—	—	0.78%	0.25% (full pipeline)
Status	Archived	Archived	Pre-filter (Stage 1)	Active ✓ Tested

06 Implementation Details

The current zero-trust pipeline is fully implemented as modular Python packages, with 27/27 integration tests passing. Below are the technical specifics of each component.

6.1 Deep Dictionary Learning Model

Architecture

Component	Specification
Input	40 CIC-IDS-2017 features — superset of BCC's 28 (Z-score normalised)
Layer 1 Dictionary	D₁ ∈ ℝ^40×64 — captures coarse flow patterns
Layer 2 Dictionary	D₂ ∈ ℝ^64×128 — captures subtle micro-patterns
Sparse Coding	ISTA (Iterative Shrinkage-Thresholding Algorithm), 50 iterations per layer
Sparsity Penalty (λ)	0.1 (L1 regularisation on sparse codes)
Dictionary Update	Mini-batch gradient descent with column-wise unit-norm projection
Training Epochs	150 (batch size = 512, GPU: RTX 6000 Ada, ~1h 45min)
Training samples	1,682,457 normal flows (CIC-IDS-2017 TRAIN)
Anomaly Threshold	0.7597 (95th percentile of training reconstruction error)

Forward Pass

x → normalise → α₁ = ISTA(D₁, x)     // Layer 1 sparse code (64-dim)
α₁ → α₂ = ISTA(D₂, α₁)     // Layer 2 sparse code (128-dim)
α₂ → α̂₁ = α₂ · D₂ᵀ           // Decode to Layer 1 space
α̂₁ → x̂ = α̂₁ · D₁ᵀ            // Full reconstruction
error = ‖x − x̂‖²            // If error > threshold → Anomaly

Training Strategy

The model trains only on benign traffic — an unsupervised approach that avoids the need for labelled attack samples. During training, dictionaries D₁ and D₂ learn to efficiently represent normal flow patterns via alternating sparse coding (ISTA) and dictionary update (gradient descent with column normalisation). After training, an anomaly threshold is set at the 95th percentile of reconstruction errors on the training set. At inference time, any flow whose reconstruction error exceeds this threshold is flagged as anomalous.

6.2 Explainability Module (XAI)

Every anomaly decision is accompanied by a detailed explanation through two complementary strategies:

DDL-Native Explanation

Per-feature reconstruction error — decomposes the total error into each of the 15 features, ranks them by contribution
Sparse code activation analysis — reports how many dictionary atoms activated in each layer (sparsity ratio)
Layer-by-layer diagnostics — intermediate representations at L1 and L2 for failure-mode analysis
Expected vs. observed values — shows what the DDL model expected each feature to be versus the actual value

SHAP KernelExplainer

Model-agnostic — treats the DDL anomaly scorer as a black box, compatible with any future model replacement
Background dataset — uses 100 normal samples as the baseline distribution
Per-feature SHAP values — quantifies each feature's individual contribution to the anomaly score
Actionable output — "Packet Length Variance contributes +8340 to anomaly score" rather than "Feature_045 is important"

Both strategies produce a composite report suitable for SOC analyst dashboards and automated policy audit trails. The human-readable interpretation includes feature rankings, deviation magnitudes, and a recommended action (DROP / FORWARD).

6.3 SDN Buffer (Simulated OpenFlow)

Parameter	Value	Description
Max Buffer Size	1,000 streams	Max concurrent flows held for analysis
Timeout	5,000 ms	Auto-release if DDL analysis takes too long
Actions	BUFFER → RELEASE / DROP	Mirrors OpenFlow `OFPT_PACKET_IN` / `OFPT_FLOW_MOD`
Expiry Policy	Auto-release with warning	Fail-open on timeout to prevent denial of service

In a real deployment, this module would be replaced by actual SDN controller commands (e.g., OpenDaylight or ONOS). The simulation faithfully tracks buffer state, hold times, and capacity — providing realistic latency measurements for the pipeline evaluation.

6.4 Pipeline Orchestrator

The ZeroTrustPipeline ties all components together with a fail-closed design:

Stage 1 .pcap → simulate TLS encryption → extract 15 features
Stage 2 Features → Decision Tree pre-check
         ├─ Normal → FORWARD immediately (fast path)
         └─ Flagged → SDN Buffer HOLD
Stage 3 Buffer → DDL + XAI (parallel threads)
         ├─ DDL: Normal → Buffer RELEASE → FORWARD
         └─ DDL: Anomaly → Buffer DROP + XAI Report attached

Parallel execution: DDL prediction and SHAP explanation run concurrently via ThreadPoolExecutor
Ground truth tracking: When labels are available, the pipeline calculates TP/TN/FP/FN, accuracy, precision, recall, F1
Fail-closed default: If the DT model is unavailable, all streams are flagged for DDL analysis (zero-trust principle)
Batch mode: run_batch() processes multiple pcaps and exports a full JSON log for analysis

6.5 Feature Sets — Why 28 (BCC) and 40 (DDL)?

Features were selected from CIC-IDS-2017's 78 columns using three criteria: (1) not null across all 5 days, (2) high ANOVA F-score between Normal vs Attack classes, (3) computable from raw network metadata (no payload inspection — works on encrypted traffic). The two feature sets are cumulative — DDL's 40 is a superset of BCC's 28.

#	Feature	Category	Used in	Rationale
1	Packet Length Variance	Packet Size	BCC + DDL	High variance → unusual payload distribution (DDoS uses uniform sizes)
2	Fwd Packet Length Max	Packet Size	BCC + DDL	Abnormally large fwd packets → exfiltration
3	Fwd Header Length	Header	BCC + DDL	Header padding/manipulation is a common evasion technique
4	Init_Win_bytes_forward	TCP Window	BCC + DDL	Unusual initial window sizes → scanning tools (e.g. nmap)
5	Bwd Header Length	Header	BCC + DDL	Asymmetric header sizes → protocol misuse / C2
6	Total Length of Fwd Packets	Volume	BCC + DDL	Abnormal volume → flooding or data exfiltration
7	Init_Win_bytes_backward	TCP Window	BCC + DDL	Mismatched backward window → C2 traffic signature
8	Bwd Packets/s	Rate	BCC + DDL	High backward rate → DDoS or amplification attack
9	Flow IAT Min	Timing	BCC + DDL	Machine-generated traffic has unnaturally regular timing
10	Fwd IAT Min	Timing	BCC + DDL	Forward inter-arrival times reveal automated scanning
11	Flow Bytes/s	Throughput	BCC + DDL	Sudden throughput spikes → data exfiltration or flooding
12	Active Min	Activity	BCC + DDL	Short active bursts → bot behaviour / beaconing
13	Bwd IAT Total	Timing	BCC + DDL	Total backward inter-arrival → response pattern analysis
14	Flow IAT Max	Timing	BCC + DDL	Long idle gaps between bursts → C2 beaconing
15	Flow Duration	Duration	BCC + DDL	Abnormally short or long flows → scanning or tunnelling
16	Total Fwd Packets	Volume	BCC + DDL	Packet count asymmetry reveals scanning patterns
17	Total Backward Packets	Volume	BCC + DDL	Low backward count with high forward → one-way flooding
18	Fwd Packet Length Mean	Packet Size	BCC + DDL	Average size compared to variance reveals payload consistency
19	Bwd Packet Length Mean	Packet Size	BCC + DDL	Backward size profile distinguishes scan responses
20	Fwd Packet Length Std	Packet Size	BCC + DDL	Low Std + high rate = tool-generated uniform traffic
21	Bwd Packet Length Max	Packet Size	BCC + DDL	Oversized backward packets → data theft response
22	Flow IAT Mean	Timing	BCC + DDL	Average timing between packets reveals automation
23	Flow IAT Std	Timing	BCC + DDL	Very low Std = machine-generated, very high = irregular
24	Fwd IAT Total	Timing	BCC + DDL	Total forward idle time — long = slow-rate attacks
25	Fwd Packets/s	Rate	BCC + DDL	High fwd rate without proportional payload = flooding
26	Down/Up Ratio	Asymmetry	BCC + DDL	Unusual download:upload ratio → exfiltration or scanning
27	SYN Flag Count	TCP Flags	BCC + DDL	Flood of SYN packets = SYN flood DDoS
28	RST Flag Count	TCP Flags	BCC + DDL	High RST count = port scanning resets
29	Bwd Packet Length Min	Packet Size	DDL only	Minimum backward pkt size — DDoS sends identical tiny ACKs
30	Bwd Packet Length Max	Packet Size	DDL only	Full backward size profile for dictionary reconstruction quality
31	Flow IAT Mean	Timing	DDL only	Provides mean for DDL's pattern reconstruction
32	Flow IAT Std	Timing	DDL only	IAT variability is key for DDL to encode normal timing patterns
33	Fwd IAT Total	Timing	DDL only	Forward idle time integral — slow-rate attacks show elevated values
34	Bwd IAT Min	Timing	DDL only	Fast backward bursts = scanning or amplification signatures
35	Fwd Packets/s	Rate	DDL only	Forward packet rate for DDL's flow-speed dictionary
36	Bwd Packets/s	Rate	DDL only	Backward packet rate — amplification attacks show extreme ratio
37	Fwd Header Length.1	Header	DDL only	Cumulative header overhead — anomalous for tunnelling
38	Active Min	Activity	DDL only	Shortest active period — bots have very short minimum active windows
39	ACK Flag Count	TCP Flags	DDL only	ACK flood is a common DDoS variant — DDL needs this for flag profiling
40	URG Flag Count	TCP Flags	DDL only	Urgent flags rarely appear in normal traffic — clear anomaly indicator

All 40 features are metadata-only — no payload inspection, fully compatible with TLS-encrypted traffic. White rows = shared by BCC and DDL. Green rows = DDL-only features added to improve reconstruction fidelity.

6.6 Evaluation Status

Component	Tests	Status
DDL model training (150 epochs, GPU)	—	✓ Completed
DDL + IF standalone CSV inference	531K rows	✓ Completed
BCC on Sandaru's test_raw.csv	52K rows	✓ Completed — 99.89% recall
Full two-stage pipeline (CSV)	50K rows	✓ Completed — 93.6% precision
PCAP pipeline evaluation	128 labeled flows	✓ Completed — see Results
XAI (LIME + SHAP) explanations	5 anomaly flows	✓ Completed
Live switch / physical hardware	—	Planned

07 Experimental Results

Comprehensive evaluation conducted on CIC-IDS-2017 dataset — both CSV (bulk inference) and real labeled PCAP flows. All tests run on ada.ce.pdn.ac.lk server.

7.1 Data Sources

📊 CSV Test (Bulk Inference)

Source: CIC-IDS-2017 TEST_Traffic.csv
Size: 50,000 flows (39,754 Normal / 10,246 Attack)
Preprocessing: Raw CSV — direct column mapping
Timing measures: Pure ML inference (no PCAP parsing)
Use case: Validates model accuracy and throughput at scale

📡 PCAP Test (Real Network Traffic)

Source: CIC-IDS-2017 Friday-labeled-small PCAP
Size: 128 labeled flow directories (BENIGN + DDoS)
Preprocessing: Raw .pcap → dpkt feature extraction
Timing measures: Includes PCAP parsing overhead
Use case: Realistic end-to-end latency for live deployment

7.2 Per-Model Results (CSV Test, 50K flows)

Model	Accuracy	Precision	Recall	F1	FPR	Latency/flow
BCC v2 (raw CSV)	83.24%	87.50%	21.25%	34.19%	0.78%	0.05 µs
BCC v2 (Sandaru's test data)	98.65%	96.31%	99.89%	98.07%	2.00%	0.05 µs
DDL-40 (standalone)	84.81%	69.94%	45.37%	55.04%	5.03%	133 µs
Isolation Forest (standalone)	82.06%	62.59%	31.00%	41.46%	4.77%	2.83 µs
Full Pipeline (BCC → DDL+IF)	82.19%	93.63%	14.05%	24.44%	0.25%	~8 µs avg

Note: BCC recall is 99.89% on Sandaru's preprocessed data format (the format it was trained on). On raw CIC-IDS-2017 CSV, recall drops to 21.25% due to different feature scaling — the model itself is correct. The full pipeline achieves 93.6% precision with only 0.25% FPR — every DROP is very likely a real attack.

7.3 Confusion Matrices

BCC v2 — On Sandaru's Data ✓

        Predicted
       FORWARD DROP
Normal   33,679   688
Attack       20 17,967

Only 20 attacks leaked through BCC

Full Pipeline — CSV Test

        Predicted
       FORWARD DROP
Normal   39,656    98
Attack    8,806 1,440

98 false blocks / 39,754 normal flows = 0.25% FPR

7.4 Inference Timing: CSV vs PCAP

Stage	CSV Mode (µs)	PCAP Mode (µs)	Applies To	Notes
Feature Extraction	~0 (pre-extracted)	3,257 µs (3.26 ms)	All flows	PCAP parsing overhead (dpkt)
BCC Inference	0.05 µs	122 µs	All flows	Decision Tree predict_proba
DDL Inference	133 µs	4,317 µs (4.3 ms)	Flagged only (~5%)	2-layer ISTA reconstruction
IF Inference	2.83 µs	5,616 µs (5.6 ms)	Flagged only (~5%)	Isolation Forest scoring
Total Pipeline	~8 µs avg	~3,853 µs avg (3.9 ms)	All flows	PCAP mode dominated by parsing

Key insight: In a real SDN deployment, features would be extracted directly from the OpenFlow PacketIN event (not from a PCAP file) — bringing the feature extraction time much closer to the CSV mode values. The PCAP evaluation shows worst-case latency when reading stored captures.

7.5 XAI Explanation Sample

Flow #11 — True Attack, Correctly DROPped

Both LIME and SHAP independently explain the same flow. The convergence of explanations provides high confidence in the detection.

DDL-LIME (Why DDL flagged it)

syn_flag_count ≤ 0    -0.037 ← No SYN flags
fwd_iat_total > 1.26M +0.032 ← High idle time
flow_iat_std > 943K   +0.027 ← Erratic timing
ack_flag_count = 1    +0.025 ← Incomplete handshake

IF-LIME (Why IF flagged it)

bwd_pkt_len_mean > 161 +0.031 ← Large Bwd pkts
fwd_iat_total > 1.26M +0.029 ← Matches DDL
flow_duration > 4.75M +0.028 ← Very long flow
fwd_pkt_len_std > 23 +0.024 ← Size variance

Cross-validation: DDL and IF both point to fwd_iat_total as the top suspicious feature — this convergence is the rationale for dual-XAI verification. XAI timing: DDL-LIME = 44ms | IF-LIME = 20ms per flow.

Parameter	Plan
Training Data	CIC-IDS-2017 "Monday — WorkingHours" (benign-only, ~529K flows)
Validation Split	80/20 train/validation on benign data
Feature Normalisation	Z-score from training set (stored in model)
Convergence Criterion	Validation reconstruction error plateau (< 0.1% improvement over 20 epochs)
Threshold Tuning	Sweep 90th, 95th, 97th, 99th percentile on validation set

Attack Category	CIC-IDS-2017 Day	Expected Signature
Brute Force (FTP, SSH)	Tuesday	High Fwd IAT Min, abnormal Init_Win_bytes
DoS / DDoS (Hulk, Slowloris, GoldenEye)	Wednesday	Extreme Bwd Packets/s, Flow Bytes/s spikes
Web Attacks (XSS, SQL Injection)	Thursday AM	Unusual Fwd Packet Length Max, Header anomalies
Infiltration	Thursday PM	Long Flow Duration, irregular IAT patterns
Botnet (ARES)	Friday AM	Short Active Min bursts, C2 beaconing in Flow IAT Max
Port Scan	Friday PM	Very short flows, low Packet Length Variance
DDoS (LOIT)	Friday PM	Extreme volume in Total Length of Fwd Packets

Metric	Formula	Target	Rationale
Accuracy	(TP + TN) / N	≥ 0.95	Overall correctness
Precision	TP / (TP + FP)	≥ 0.85	Minimise false alarms for SOC analysts
Recall	TP / (TP + FN)	≥ 0.95	Zero-trust: never miss an attack (critical)
F1-Score	2 · P · R / (P + R)	≥ 0.90	Balance between precision and recall
ROC-AUC	Area under ROC curve	≥ 0.97	Threshold-independent discrimination
False Positive Rate	FP / (FP + TN)	≤ 0.05	Usability in production SDN

Experiment	Variable	Range
Dictionary Size	n_atoms_l1 / n_atoms_l2	{32, 64, 128} × {64, 128, 256}
Sparsity Weight (λ)	sparsity_weight	{0.01, 0.05, 0.1, 0.5}
Threshold Percentile	threshold_percentile	{90, 95, 97, 99}
ISTA Iterations	n_iter	{20, 50, 100}
Training Epochs	n_epochs	{50, 100, 200}
DT Pre-filter Impact	With vs. without DT	Binary comparison

Measurement	Target	Method
DT pre-check latency	< 1 ms	Average over 10K samples
DDL inference latency	< 50 ms	Per-sample, including both layers + ISTA
SHAP explanation latency	< 500 ms	KernelExplainer on single sample (15 features)
End-to-end pipeline latency	< 600 ms	pcap → feature extraction → DT → DDL + SHAP → policy
SDN buffer hold time	< 1,000 ms	Time from BUFFER to RELEASE/DROP
Throughput	≥ 100 flows/sec	Batch processing rate on CIC-IDS-2017

Phase	Task	Target Date	Deliverable
1	Train DDL on CIC-IDS-2017 benign data	Week 1	Trained model + convergence curves
2	Attack detection per category	Week 2	Per-class detection rates + confusion matrix
3	Full metrics computation	Week 2	Accuracy, Precision, Recall, F1, ROC-AUC
4	Ablation studies	Weeks 3–4	Hyperparameter sensitivity heatmaps
5	Explainability assessment	Week 4	Faithfulness report + rank correlation
6	Latency benchmarks	Week 5	Performance report + throughput analysis

Test Suite	Tests	Status
DDL Model — training, prediction, save/load	7	✓ Pass
Intermediate Representations	2	✓ Pass
XAI Explainer — DDL-native	6	✓ Pass
SHAP Integration — KernelExplainer	4	✓ Pass
Pipeline Flow — end-to-end with PCAPs	4	✓ Pass
SDN Buffer — add/release/drop	4	✓ Pass

Metric	Value
True Positives (attacks correctly dropped)	2
True Negatives (normal correctly forwarded)	0
False Positives (normal incorrectly dropped)	2
False Negatives (attacks missed)	0
Recall	1.000
F1-Score	0.667

01 Abstract

02 Team

Members

Supervisors

03 Methodology

🔐 Stage 1 — Encryption & Extraction

🌲 Stage 2 — Decision Tree Pre-Check

🧠 Stage 3 — Deep Dictionary Learning

💡 Stage 4 — XAI Explanation

🛡️ Stage 5 — SDN Buffer & Policy

📊 Stage 6 — Dashboard & Logging

Feature Sets (CIC-IDS-2017)

04 Architecture

Repository Structure

05 Experiments & Evolution

Results — Pseudo-Labeling

⛔ Why We Moved On

Results — Random Forest + SHAP

⛔ Why We Moved On

✅ Key Improvements Over Previous Experiments

⛔ Why It's Not Sufficient Alone

✅ Why This Approach Works

Side-by-Side Comparison

06 Implementation Details

6.1 Deep Dictionary Learning Model

Architecture

Forward Pass

Training Strategy

6.2 Explainability Module (XAI)

DDL-Native Explanation

SHAP KernelExplainer

6.3 SDN Buffer (Simulated OpenFlow)

6.4 Pipeline Orchestrator

6.5 Feature Sets — Why 28 (BCC) and 40 (DDL)?

6.6 Evaluation Status

07 Experimental Results

7.1 Data Sources

📊 CSV Test (Bulk Inference)

📡 PCAP Test (Real Network Traffic)

7.2 Per-Model Results (CSV Test, 50K flows)

7.3 Confusion Matrices

BCC v2 — On Sandaru's Data ✓

Full Pipeline — CSV Test

7.4 Inference Timing: CSV vs PCAP

7.5 XAI Explanation Sample

Flow #11 — True Attack, Correctly DROPped

DDL-LIME (Why DDL flagged it)

IF-LIME (Why IF flagged it)

Phase 1 — DDL Training on CIC-IDS-2017 Benign Traffic

Phase 2 — Attack Detection Evaluation

Phase 3 — Quantitative Metrics

Phase 4 — Ablation Studies & Hyperparameter Tuning

Phase 5 — Explainability Quality Assessment

Phase 6 — Latency & Throughput Benchmarks

Evaluation Timeline

08 Results & Analysis

Integration Test Results (27/27 passing)

Pipeline Demo — 4 Streams

Sample XAI Output

09 Conclusion

🔍 Transparent Detection

⚡ Real-Time Compatible

🔄 Policy Feedback Loop

Publications

10 Links

🔗 Project Repository

🏫 Department
