Self-Supervised Learning for CNN-Transformer Hybrids under Parameter and Label Constraints

I. Introduction & Motivation

Modern computer vision milestones heavily rely on massive backbone architectures and large server-scale compute profiles. This sets up a fundamental mismatch with edge deployment targets like microcontrollers and IoT nodes working under memory and hardware ceilings.

While edge-scale hybrid configurations like TinyNeXt handle supervised accuracy-efficiency trade-offs securely under 1 M parameters, their architectural compatibility with un-pretrained SSL frameworks remained completely uncharacterized. This framework addresses this gap with zero reliance on costly external graph architectures or deep attention layers.

II. Core Methodology Components

The system operates around an asymmetric encoder-decoder design. The encoder utilizes a randomly initialized TinyNeXt-T backbone, while the decoder serves as a temporary, lightweight two-layer Transformer trunk containing two standalone task heads.

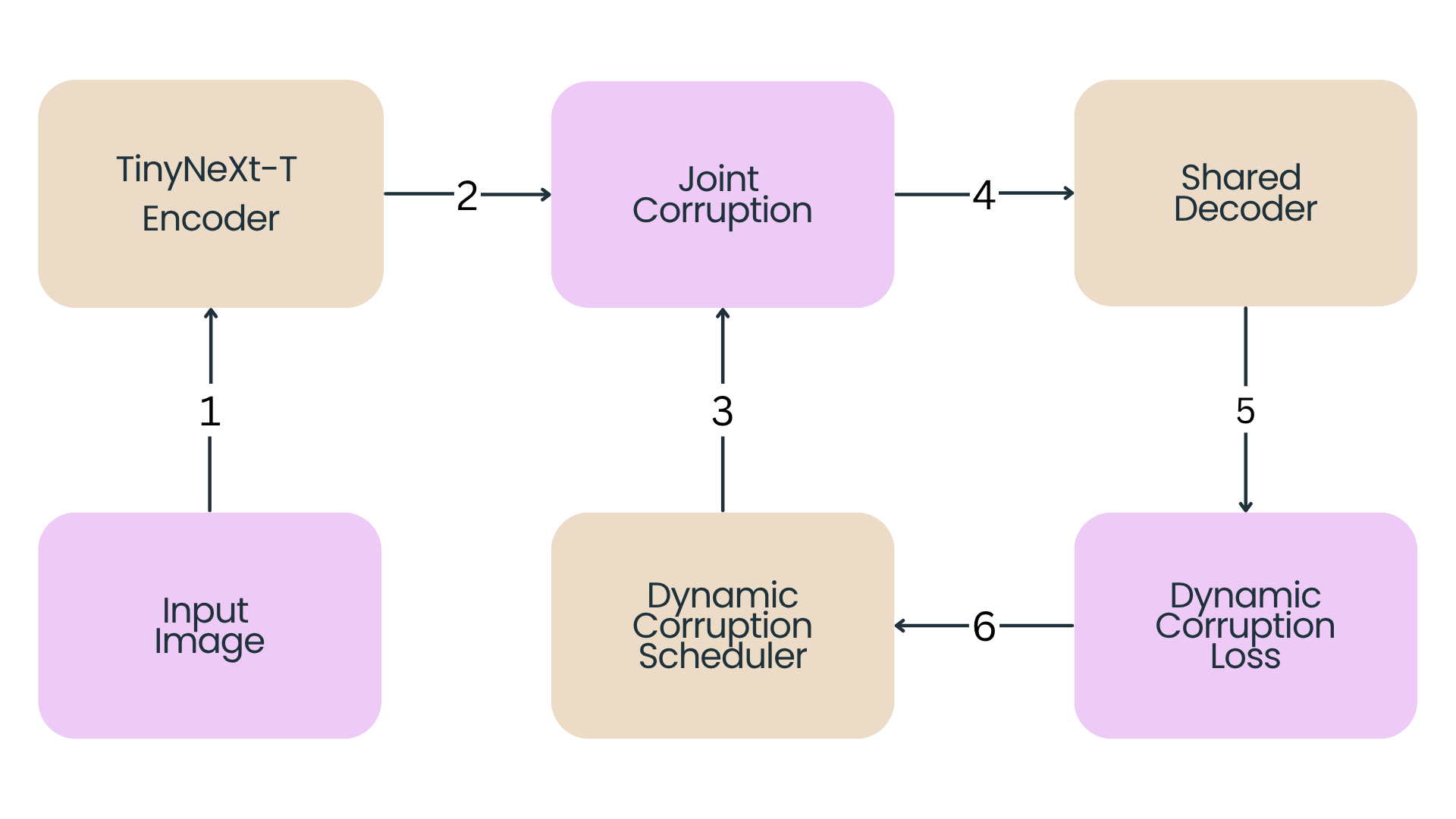

Fig. 1. Architectural overview. The Dynamic Corruption Scheduler adaptively optimizes token splitting within the Joint Corruption Block before features enter the Transformer decoder trunk.

A. Joint Corruption Block

The baseline token sequences are split into completely disjoint, non-overlapping manipulation blocks within a single forward pass to rule out supervisory feedback ambiguities:

Masked subsets map to a learnable mask embedding space, while rotated components encounter a cyclic feature-dimension rolling sequence.

B. Dynamic Corruption Scheduler

To keep basic pretext tasks from over-running the collaborative gradient signals, an exponential moving average tracker scales task weights relative to ongoing loss challenge dynamics:

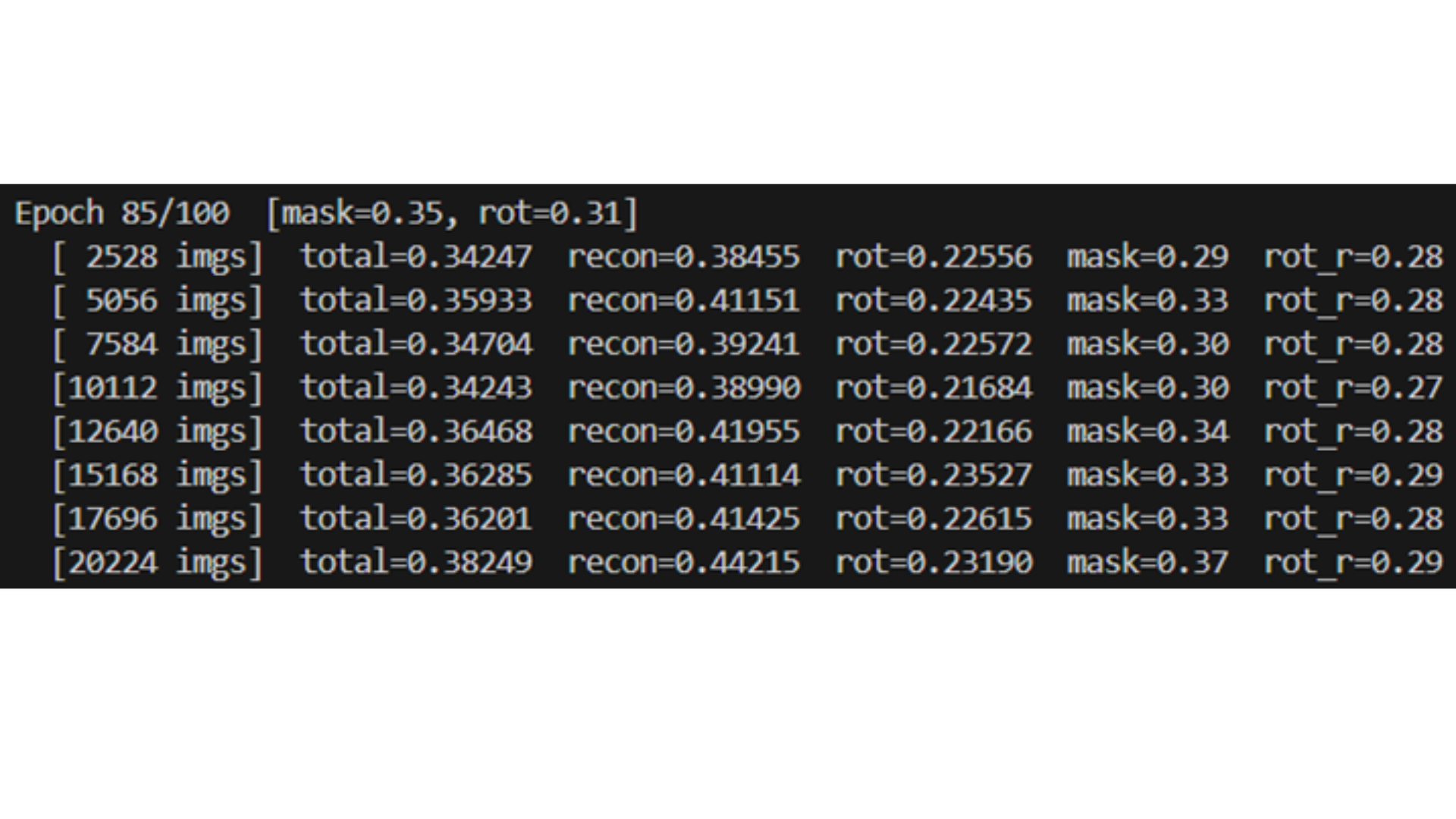

Fig. 2. Pre-training execution snapshot monitoring adaptive mask and rotation allocation ratios across training steps.

As shown in the runtime validation log above, the scheduler actively monitors loss fluctuations to re-balance mask budgets and structural modification targets at regular sequence steps, ensuring smooth multi-task training convergence.

C. Multi-Task Dynamic Loss Formulation

The complete configuration dynamically balances total backpropagation objectives through an adaptive joint weighting mechanism calculated at each operational step $t$:

The task weights $\lambda_1(t)$ and $\lambda_2(t)$ are adaptively balanced using exponential moving averages of their independent task-specific losses to prevent trivial optimization short-circuiting. The disentanglement weight $\lambda_3$ handles cross-task feature leaks across heads using an adversarial objective driven by a Gradient Reversal Layer (GRL).

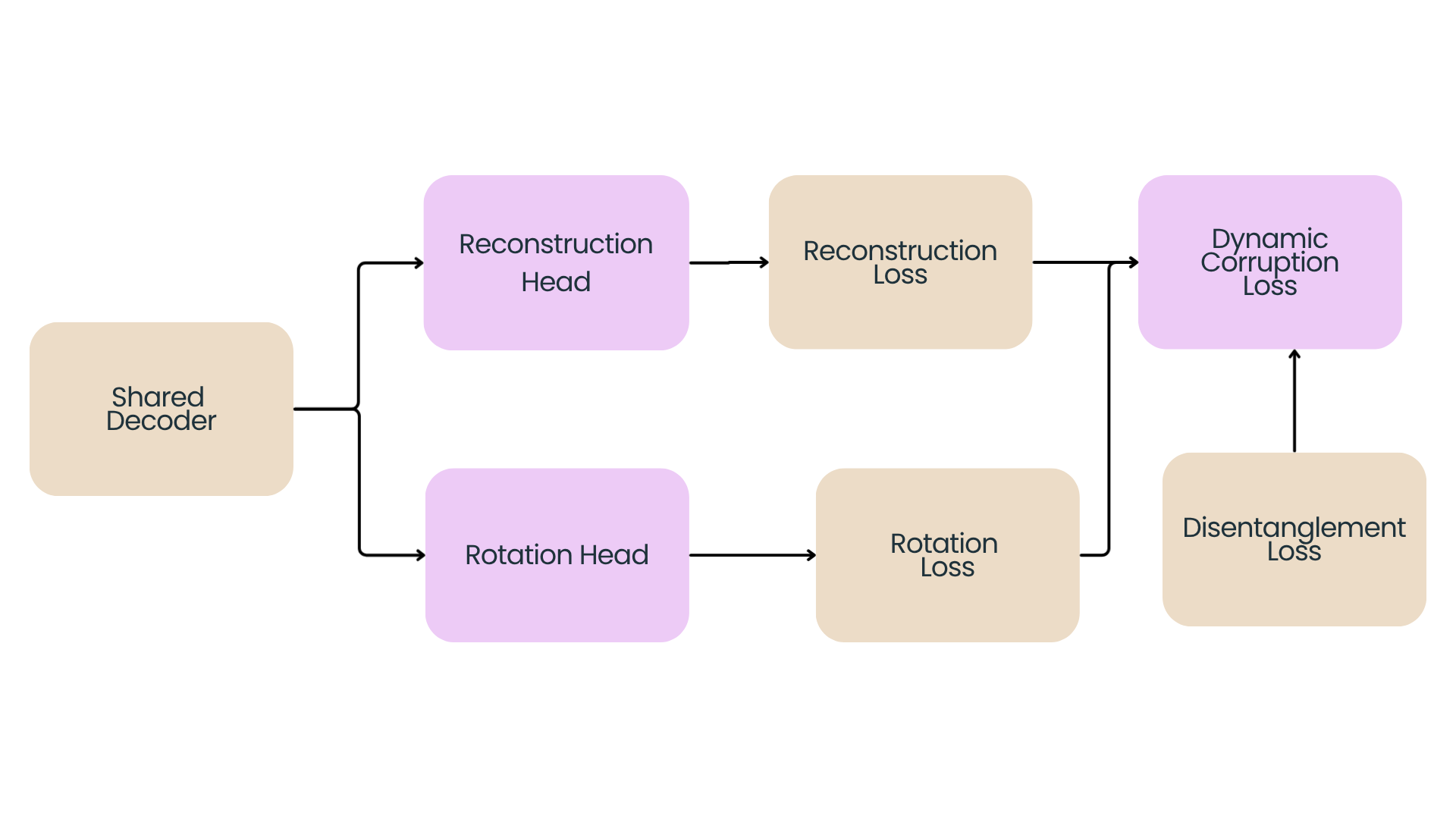

Fig. 3. Shared decoder pipeline. Features branch out into independent reconstruction and rotation heads to balance primary tasks alongside adversarial gradient-reversal penalties.
