Diffusion-Based Counterfactual ECG Generation for Atrial Fibrillation Data Augmentation

Team

Supervisors

Collaborators

Table of Contents

  1. Introduction
  2. Related Works
  3. Methodology
  4. Results
  5. Conclusion
  6. Publications
  7. Links

Introduction

Automated detection of atrial fibrillation (AFib) using deep learning requires large, balanced ECG datasets, yet clinical data remains scarce, imbalanced, and constrained by privacy regulations. We present a diffusion-based data augmentation pipeline that generates synthetic ECG segments by transforming existing recordings into counterfactual waveforms of the opposing class. The pipeline uses a partial-noise conditional denoising process with classifier-free guidance, operating on single-lead ECG signals. A content-style disentangled UNet architecture separates class-invariant morphology from class-discriminative rhythm features. A multi-stage plausibility post-validator enforces morphological and physiological constraints, retaining only waveforms that satisfy quality thresholds.

The augmented mixture achieves 95.05% accuracy and 98.60% AUROC, statistically equivalent to original-only training (95.63% accuracy, TOST p = 0.007, Δ = ±2%). Furthermore, none of the accepted counterfactuals are near-copies of training data (maximum correlation: 0.30), indicating the generated signals are novel and privacy-preserving.

This research is conducted as part of the EU-funded SEARCH Initiative through an international collaboration between the University of Peradeniya (Sri Lanka), SimulaMet (Norway), Tulane University (USA), and the University of Copenhagen (Denmark).

Generative models for ECG synthesis have been explored using GANs, VAEs, and more recently, diffusion models.

Method Model Counterfactual Key Limitations
PGAN-ECG (Golany et al.) GAN No Limited rhythm diversity
WaveGAN-ECG (Donahue et al.) GAN No Mode collapse on long signals
ECG-VAE (Biswal et al.) VAE No Blurred morphology
CoFE-GAN (Jang et al., 2025) GAN Yes Requires iterative latent inversion
GCX-ECG (Alcaraz-Segura et al.) GAN Yes Weak morphology preservation
Ours Diffusion Yes Single-lead; automated validation only

Methodology

Pipeline Overview

Our pipeline consists of five stages: data preparation, classifier training, two-stage diffusion model training, counterfactual generation with filtering, and three-regime augmentation evaluation.

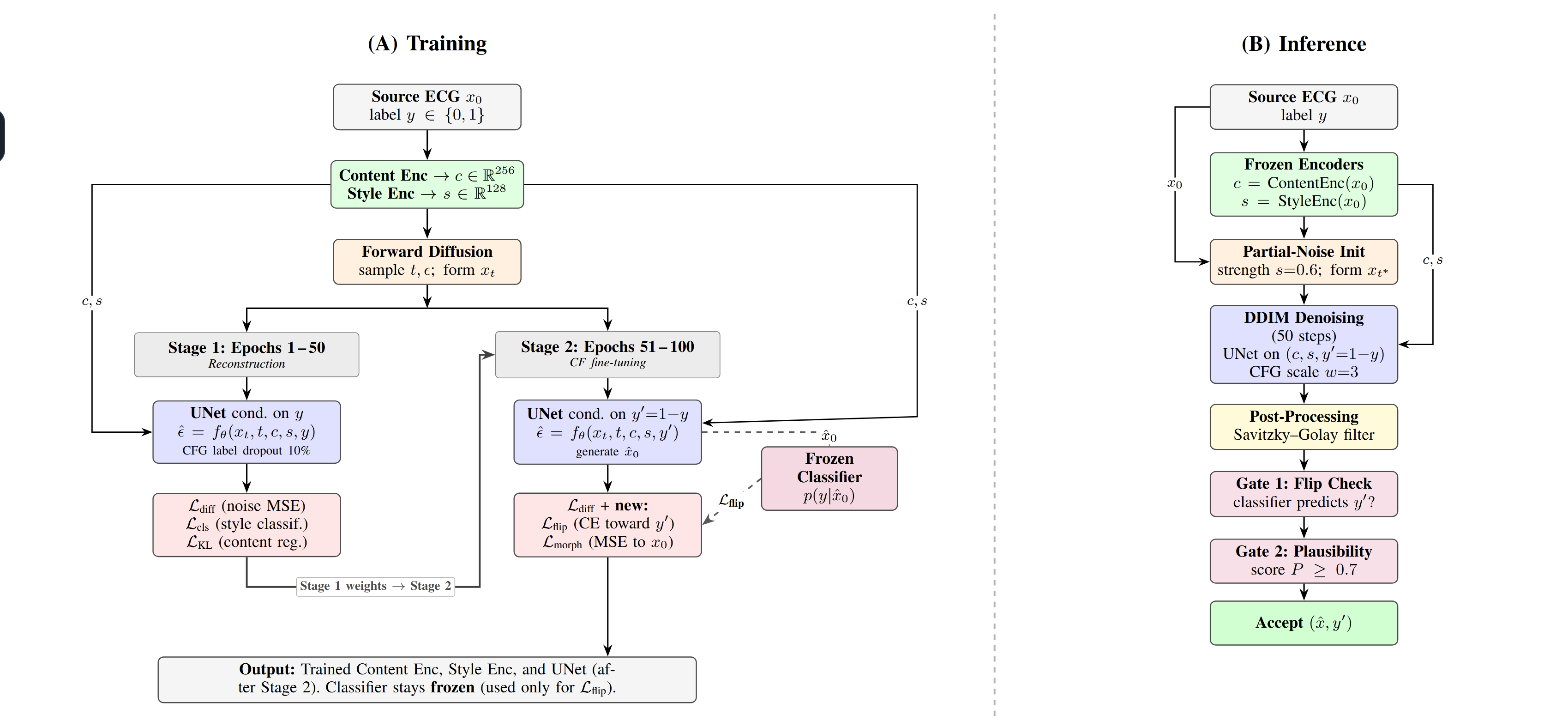

Pipeline Overview

Two-Stage Training

Stage 1 (Epochs 1-50): Reconstruction - The content encoder extracts class-invariant morphological features (256-d VAE latent), and the style encoder captures class-discriminative rhythm features (128-d embedding). The conditional 1D UNet learns to denoise ECG signals with classifier-free guidance (10% label dropout).

Stage 2 (Epochs 51-100): Counterfactual Fine-tuning - The UNet is conditioned on the target class label (y’ = 1 - y), while a frozen AFib classifier provides supervision through a flip loss, and a morphology preservation loss constrains deviation from the source signal.

Inference Pipeline

  1. Partial-noise initialization - Corrupt source ECG to 60% noise level
  2. DDIM denoising - 50 steps with classifier-free guidance (scale w = 3)
  3. Post-processing - Savitzky-Golay smoothing
  4. Gate 1: Flip verification - Frozen classifier must predict target class
  5. Gate 2: Plausibility check - Score P = 0.3M + 0.3Phi + 0.4*C >= 0.7
  6. Accept - Output filtered counterfactual with verified label

Dataset

We use the MIMIC-IV ECG Diagnostic Electrocardiogram Matched Subset (PhysioNet), processing Lead II recordings at 250 Hz, 10-second segments (2,500 samples), bandpass filtered at 0.5-40 Hz.

Partition Segments Normal / AFib
Training 104,855 52,447 / 52,408
Validation 22,469 11,239 / 11,230
Test 22,469 11,239 / 11,230
Total 149,793 74,925 / 74,868

Results

Of 22,469 raw counterfactuals generated, 7,784 passed all quality gates (34.6% acceptance rate).

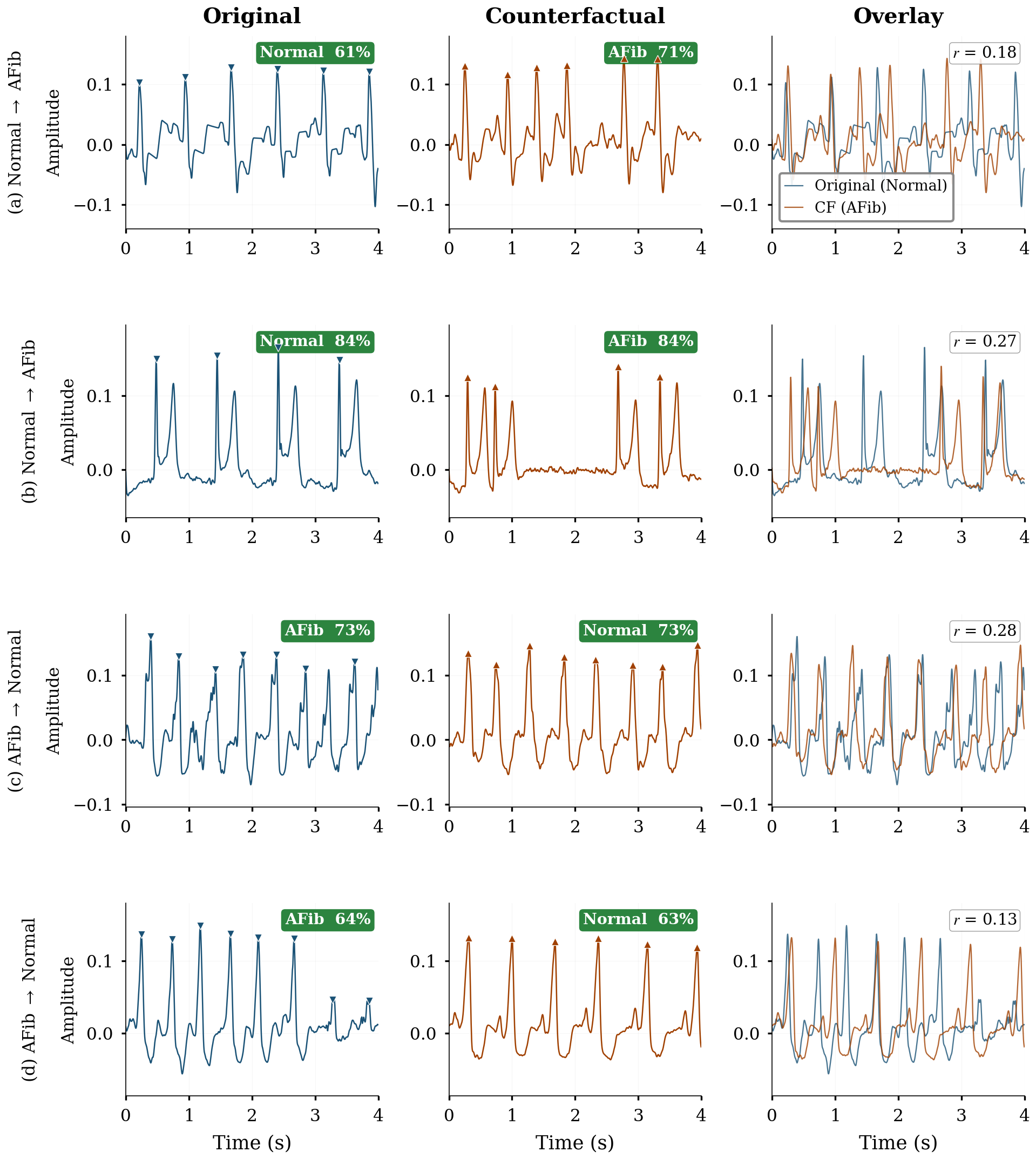

ECG Comparison

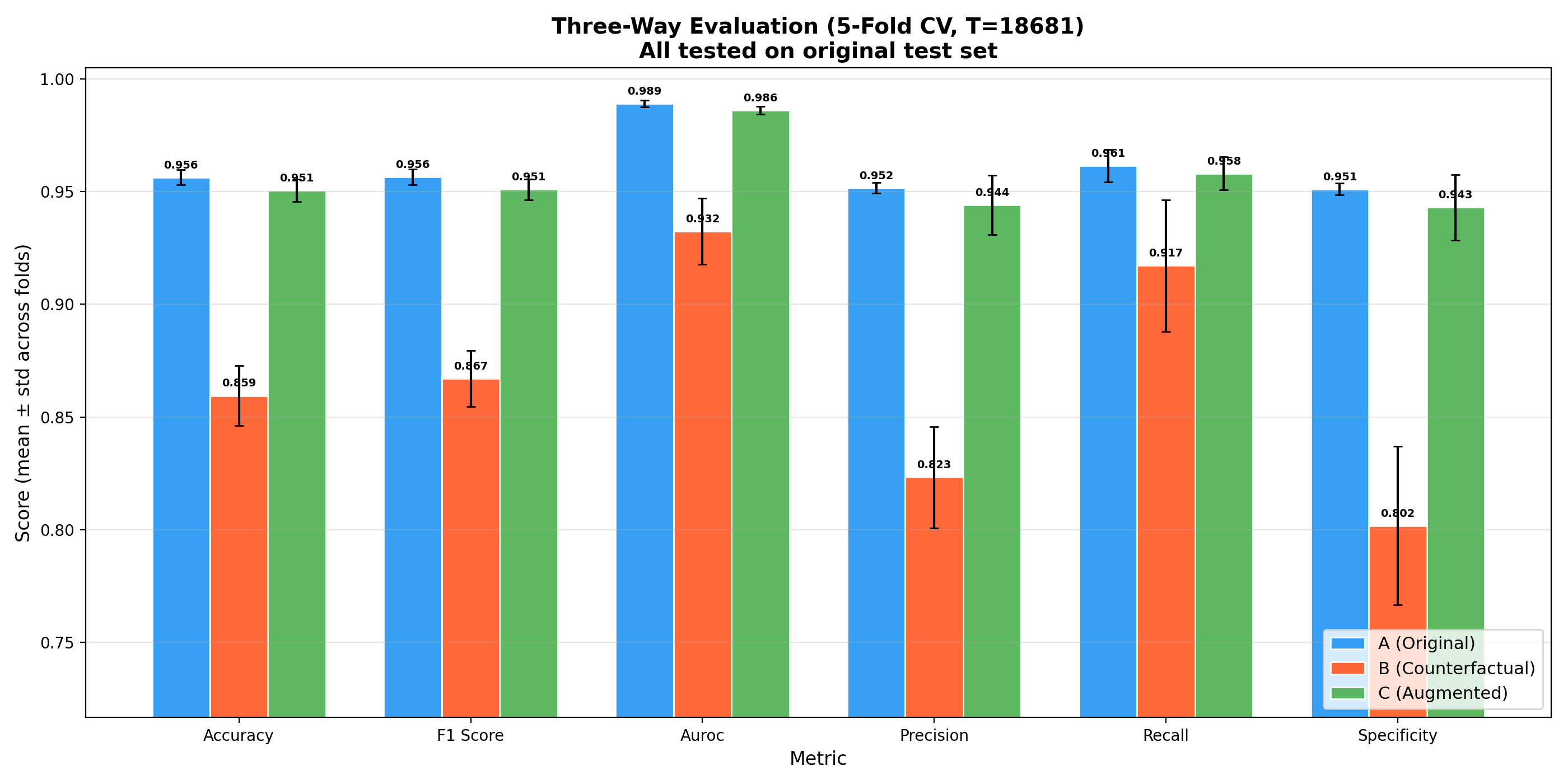

Augmentation Evaluation (5-Fold Cross-Validation)

Training Regime Accuracy F1 Score AUROC
A - Original only 95.63 +/- 0.33% 95.65 +/- 0.35% 98.90 +/- 0.16%
B - CF only 85.94 +/- 1.32% 86.70 +/- 1.24% 93.24 +/- 1.47%
C - Augmented (67% + 33%) 95.05 +/- 0.50% 95.09 +/- 0.46% 98.60 +/- 0.17%

Performance Comparison

Statistical Equivalence Testing

Test Result p-value
McNemar’s test Delta = 0.54% < 0.001
TOST equivalence (+-2%) Equivalent < 0.001
Non-inferiority (2%) Non-inferior < 0.001
Dunnett’s (A vs C) No sig. diff. 0.340
Dunnett’s (A vs B) Sig. diff. < 0.001

Conclusion

We presented a diffusion-based counterfactual ECG generation pipeline that transforms single-lead ECG recordings into counterfactuals of the opposing class. The goal is to establish that synthetic counterfactual data can safely substitute for or supplement real patient recordings without degrading diagnostic performance - enabling privacy-preserving data sharing and class balancing for AFib detection.
