Introduction

Maintaining safe water quality across multiple tanks is difficult when monitoring is done manually. In many aquarium vending environments, parameter checks are infrequent, corrective actions are delayed, and environmental changes can go unnoticed for hours. This directly affects fish health and increases operational risk.

This project introduces a Modular Aquarium Management System that combines sensor monitoring, automation logic, and IoT connectivity to maintain stable tank conditions. The system continuously measures parameters such as temperature, pH, ORP, EC, salinity, and water level, then applies rule-based control to relevant actuators. The modular design allows the platform to start small and scale as required.

↑ Back to Top

Problem Statement

Small to medium-scale fish vendors commonly experience:

Inconsistent and manual water quality checks.
Delayed detection of harmful conditions.
Limited automation in routine tank maintenance.
Financial losses due to fish stress, disease, and mortality.

There is a clear need for an affordable, deployable, and easy-to-extend smart monitoring and control system.

Objectives

Build a centralized, ESP32-based control system for aquarium environments.
Continuously capture key water-quality indicators.
Trigger safe, automated responses when parameters exceed thresholds.
Enable data visibility through networked logging and dashboard integration.
Keep the design modular, low-cost, and maintainable.

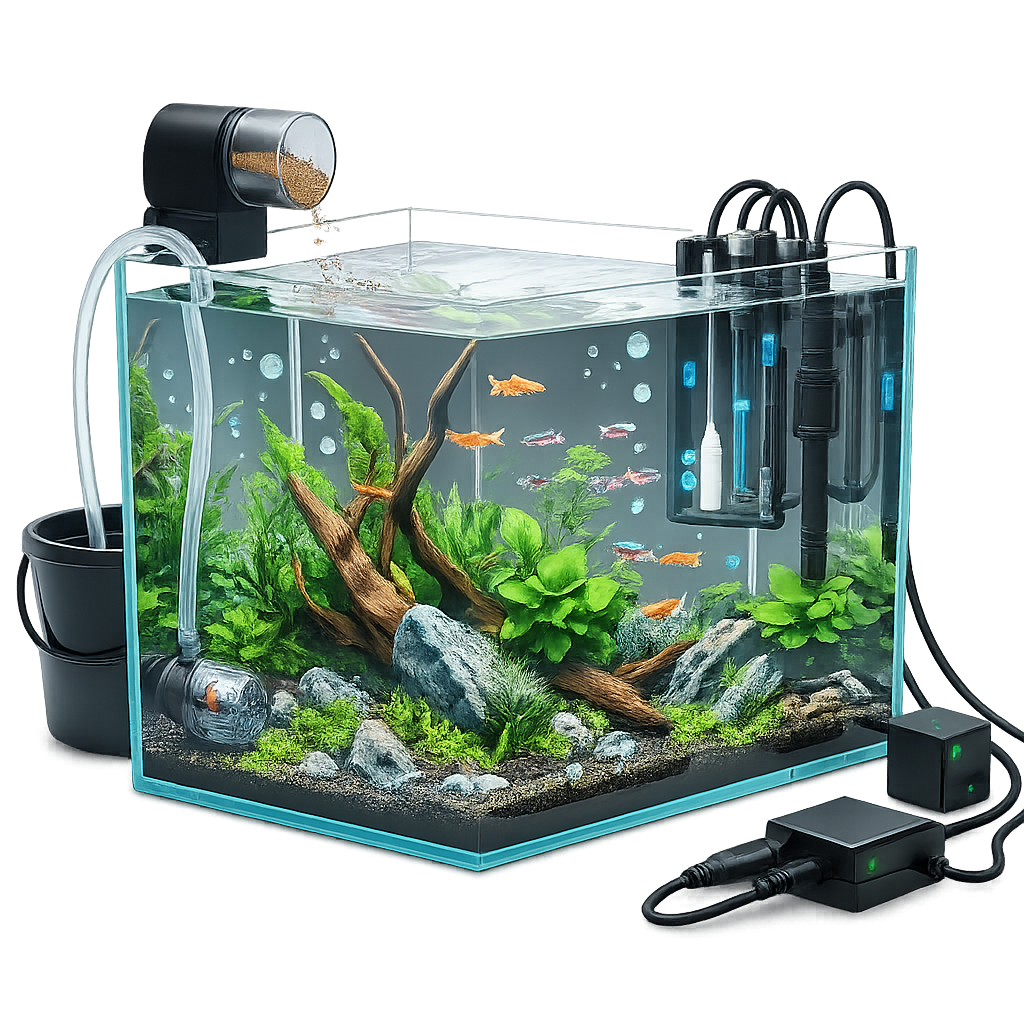

Solution Architecture

The platform uses a centralized control model around an ESP32 controller, connected to multiple sensors and relay-driven actuators. Data is sampled from sensor modules, validated and processed by embedded logic, and then used to trigger local control actions. The same data can be transmitted for remote monitoring and alerting.

The architecture is intentionally modular. Sensor modules and control capabilities can be added or removed without redesigning the full platform, making it suitable for varying tank sizes and vendor budgets.

Main Architectural Components

Sensor Modules (Water Quality Monitoring)
Central Control Unit (ESP32)
Actuator Control Unit (Relays)
Power Management Unit
Communication and Data Layer (Wi-Fi / MQTT-ready pipeline)
Optional Monitoring Dashboard and Alert Interface

System Workflow

Sensor modules periodically acquire water-quality measurements.
ESP32 firmware filters, calibrates, and validates readings.
Rule engine compares readings against safe operating thresholds.
Actuators are switched via relays when corrective action is needed.
Processed data is published for visualization and long-term monitoring.
Alerts are generated for abnormal or persistent unsafe conditions.

Hardware and Software Design

Hardware Design

Central Control Unit

ESP32 Microcontroller
- Handles sensor acquisition, decision logic, and actuator control
- Provides built-in Wi-Fi for telemetry and remote monitoring

Sensors Used

Temperature: DS18B20 waterproof sensor
pH: Gravity pH sensor (DFRobot / pH-4502C)
ORP: ORP probe with signal conditioning
Electrical Conductivity (EC): EC sensor module
Salinity & Specific Gravity: Calculated from EC values
TDS: Dedicated TDS sensor or derived from EC
Water Level: Float switch
Turbidity (Optional): Optical turbidity sensor for water clarity estimation

Actuators

Actuators are controlled through a relay board:

Heater
Water pump
Air pump
Filtration unit

Power Management

12V DC power supply
Buck converters (LM2596)
Voltage regulators
Fuse and surge protection mechanisms for electrical safety

Software Design

Embedded Firmware
- Written using Arduino framework
- Sensor data acquisition and calibration
- Control logic and automation rules
Control Algorithms and Safety
- Threshold-based control strategy
- Fail-safe cutoffs during abnormal or invalid sensor states
- Controlled actuation to avoid rapid on/off relay toggling
Connectivity and Monitoring
- Real-time data transmission for dashboard visualization
- Event/alert notifications for out-of-range parameters

Implementation Stack and Modules

This project is implemented as a complete multi-layer system:

1) ESP32 Firmware Layer

Written in C++ (Arduino framework) for ESP32.
Reads DS18B20 temperature, TDS (ADC), and ultrasonic water-level sensor data.
Controls relays for inlet/outlet pumps and servo-based feeder actions.
Stores threshold settings in non-volatile memory (Preferences).
Supports secure MQTT publishing/subscription with TLS root certificate.

2) Backend Service Layer

Runtime: Node.js + Express.
Realtime transport: Socket.IO.
Messaging: MQTT client ingestion and command publishing.
Validation: express-validator.
Auth and access control: JWT + role-based authorization (SUPER_ADMIN, ADMIN, USER).

3) Data Layer

Primary application state: MongoDB via Prisma.
Time-series history: InfluxDB (water_quality measurement).

4) Frontend Layer

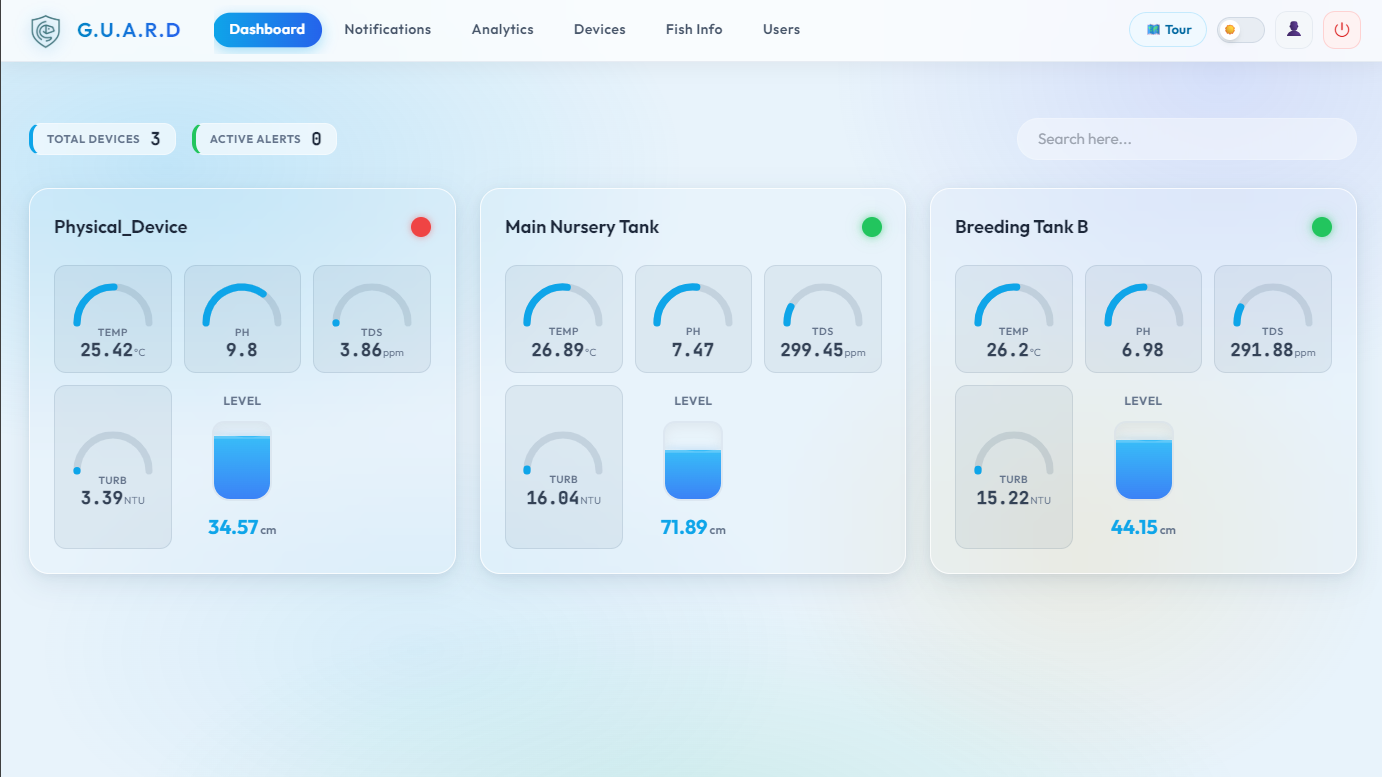

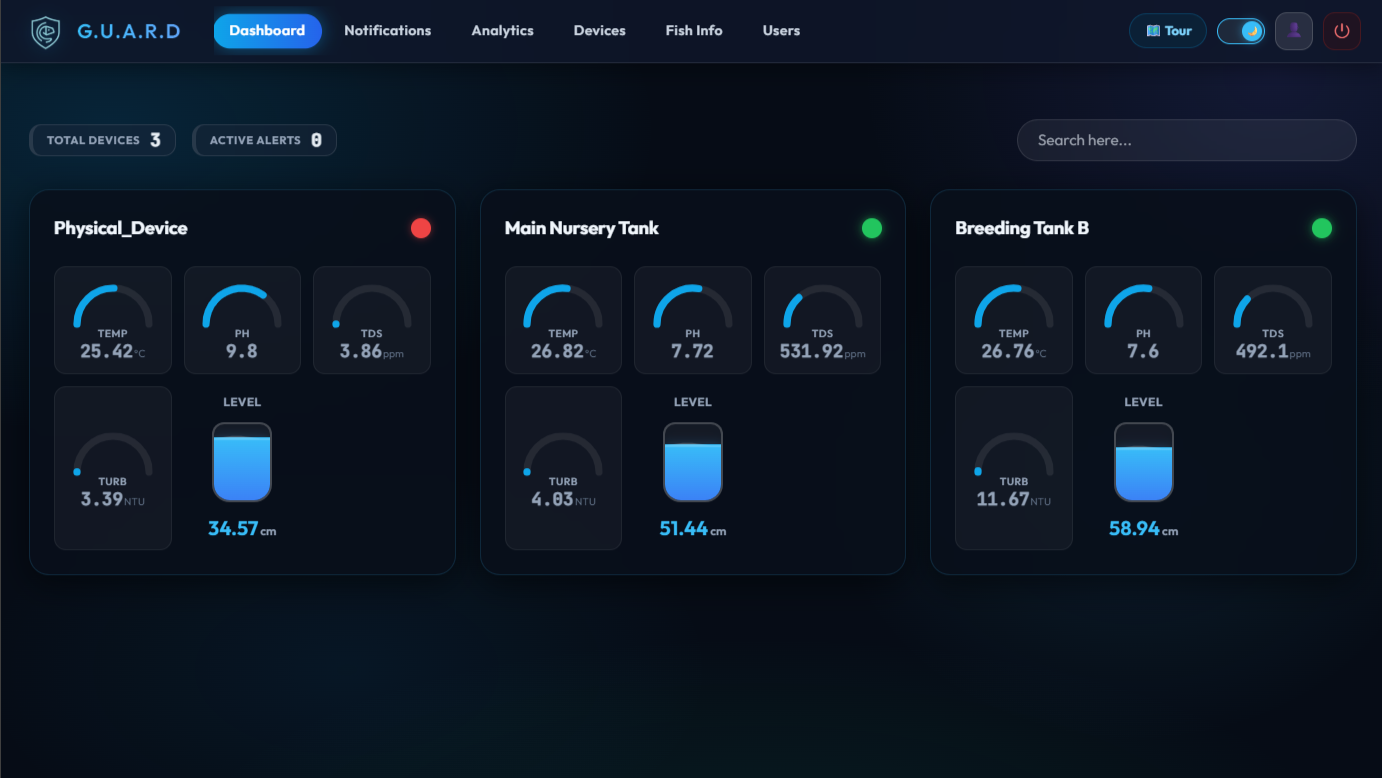

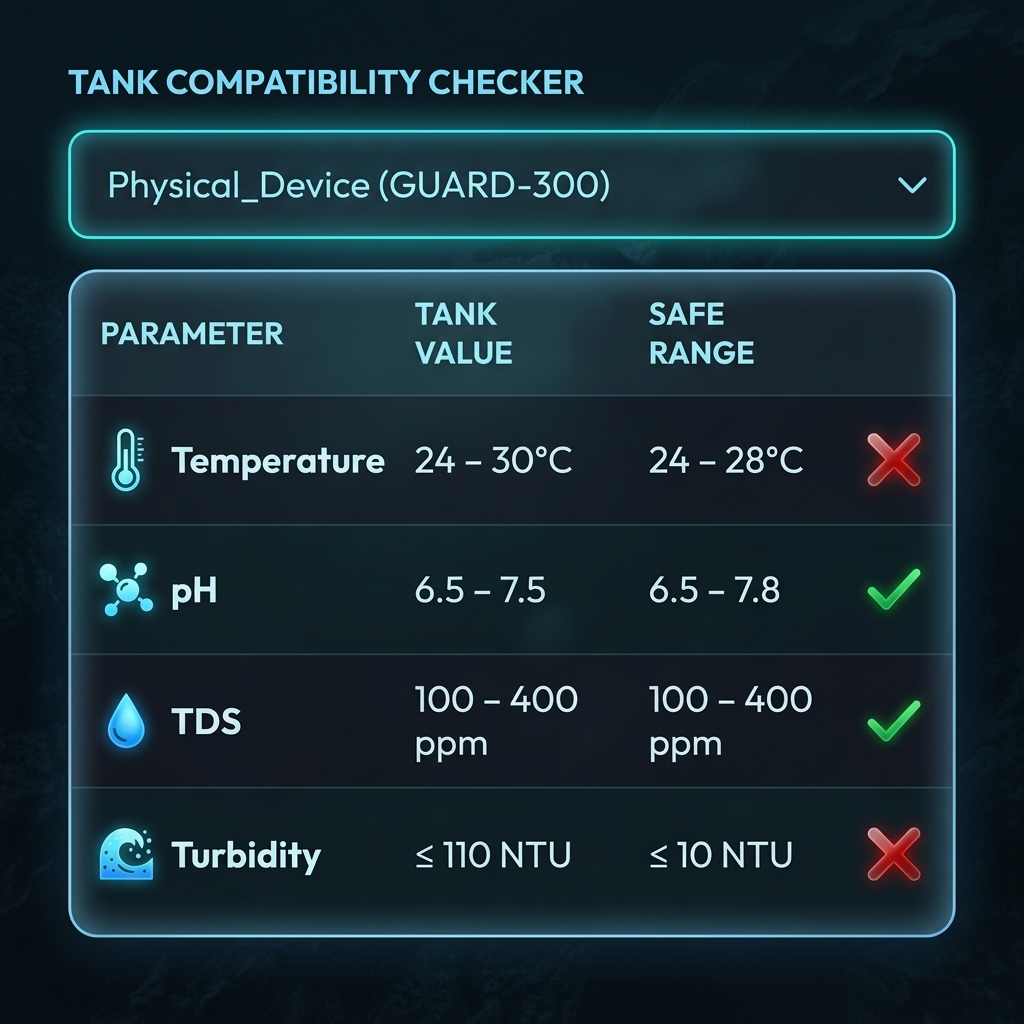

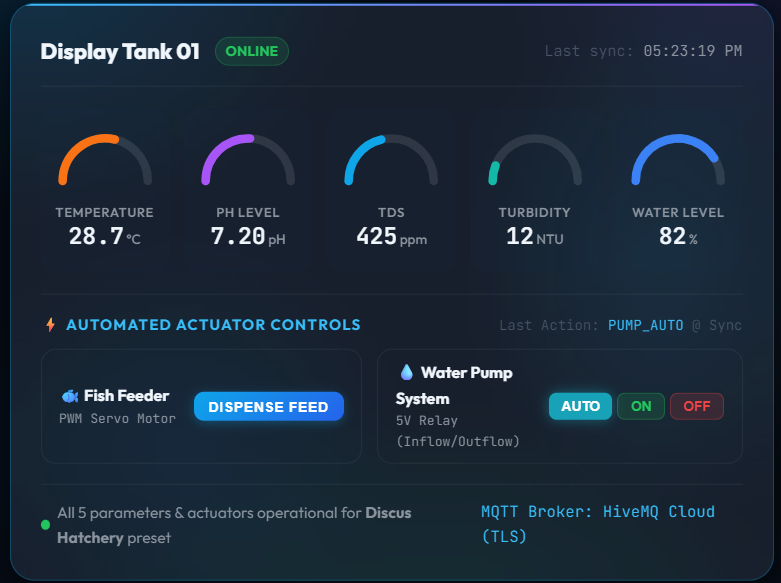

React + Vite dashboard.
REST API integration for auth, tanks, sensors, and alerts.
Socket.IO client for live sensor and alert events.

Backend Services and API

Service Capabilities

REST API server with CORS-enabled frontend access.
MQTT subscription to live topics for sensor values and alerts.
Hybrid persistence: latest state in MongoDB + historical series in InfluxDB.
Real-time push notifications using Socket.IO events.
Email alert dispatch to tank owners/workers.

Main API Groups

Authentication (/api/auth)
- Login, register, Google login.
- Email verification and resend verification.
- Profile updates.
- Admin and user management by role.
Tank Management (/api/tanks)
- Register tank, list tanks, get per-tank status.
- Assign/unassign workers to tanks.
- Delete tanks with ownership checks.
- Trigger actuator commands (feed, pump_on, pump_off).
Sensors (/api/sensors)
- Optional HTTP ingest route (/log) for testing.
- Historical analytics route (/history/:tankId) from InfluxDB.
Alerts (/api/alerts)
- List alerts and mark alerts as resolved.
- Test endpoint to simulate MQTT alert processing.

Realtime Events

sensor_data: pushed on each valid sensor ingestion.
alert_new: pushed when a new alert is persisted.

Firmware Logic and MQTT Protocol

ESP32 Control Behavior

Reads sensors on short polling intervals and publishes data at fixed intervals.
Uses deadband/hysteresis logic to avoid unstable pump toggling.
Applies threshold-driven water quality control for temperature, TDS, and level.
Implements fallback reconnect loops for Wi-Fi and MQTT.
Supports long-press reset behavior for configuration reset flow.

MQTT Topics Used

Sensor publish topics
- sensor/<deviceId>/temperature
- sensor/<deviceId>/tds
- sensor/<deviceId>/waterlevel
Alert publish topics
- alert/<deviceId>/<parameter>
Command subscribe topic
- device/<deviceId>/command
Threshold update topics
- device/<deviceId>/set/temp_min
- device/<deviceId>/set/temp_max
- device/<deviceId>/set/tds_min
- device/<deviceId>/set/tds_max
- device/<deviceId>/set/water_level
- device/<deviceId>/set/water_stop

Payload Pattern

Sensor payloads are JSON with value and timestamp.
Alert payloads carry alert type and measured value.
Actuator commands are published as simple string commands.

Data Storage and Security

Data Model

User model
- Role-aware hierarchy (SUPER_ADMIN, ADMIN, USER).
- Admin-to-worker ownership mapping.
- Email verification support.
Tank model
- Unique tank IDs.
- Admin owner + worker assignment.
- Configurable safe ranges and last-known telemetry values.
Alert model
- Parameter/type/message/value fields.
- Tank linkage and resolution status.

Data Flow Design

Firmware publishes sensor packets to MQTT.
Backend MQTT service validates and maps sensor fields.
Tank live status updates in MongoDB.
Time-series points write to InfluxDB.
Frontend reads status/history and listens for realtime events.

Security and Reliability Measures

JWT-based protected routes and role-restricted endpoints.
Access checks for tank ownership/assignment before operations.
Input validation on critical routes.
Duplicate-alert suppression window to reduce notification spam.
Graceful shutdown of MQTT, Prisma, and Influx write buffers.

Implementation Highlights

Built on low-cost, widely available hardware modules.
Supports gradual deployment from single-tank to multi-tank setups.
Uses a practical control approach suitable for real-world vendor operations.
Designed with maintainability in mind, including sensor-level modularity.
Provides a clear path for cloud integration and advanced analytics.
Delivers end-to-end IoT flow from edge sensing to realtime dashboard updates.

Testing and Validation

Hardware Testing

Individual sensor calibration and validation
Relay switching tests under load
Power stability and fault testing

Software Testing

Sensor data accuracy verification
Control logic testing under simulated conditions
Fail-safe behavior validation (sensor disconnection, noisy values, power loss)

Results Summary

Sensors provided stable readings within acceptable tolerance
Automation logic maintained safe operating ranges in repeated test runs
Abnormal conditions triggered expected relay actions and alerts

Detailed Budget

Item	Quantity	Unit Cost	Total
ESP32 Development Board	1	4,000 LKR	4,000 LKR
DS18B20 Temperature Sensor	1	800 LKR	800 LKR
pH Sensor Module	1	5,000 LKR	5,000 LKR
ORP Sensor Module	1	6,000 LKR	6,000 LKR
EC Sensor	1	6,500 LKR	6,500 LKR
TDS Sensor	1	2,500 LKR	2,500 LKR
Float Switch	1	600 LKR	600 LKR
Relay Module	1	1,200 LKR	1,200 LKR
Power Supply & Regulators	1	3,000 LKR	3,000 LKR
Miscellaneous	-	2,000 LKR	2,000 LKR

Estimated Total: ~ 34,600 LKR

Impact and Future Improvements

This project demonstrates that a practical and cost-effective smart aquarium platform can significantly improve maintenance consistency, reduce manual effort, and protect fish health through timely intervention.

Planned future extensions include:

Cloud-based historical analytics and reporting.
Mobile app integration for remote operations.
Adaptive or AI-assisted anomaly detection.
Product-level packaging for commercial deployment.
