Introduction

The Department of Forensic Medicine at the Teaching Hospital Peradeniya handles critical clinical forensic cases (e.g., trauma, domestic abuse, sexual violence) and postmortem autopsy examinations. Currently, the department relies on physical registers, manual paper-based Medico-Legal Examination Forms (MLEF), and paper Postmortem Reports (PMR).

This manual workflow creates critical operational bottlenecks:

Medico Forensic DBMS is a relational database system engineered specifically to digitize, secure, and streamline the operational workflows of the Forensic Department. The primary objective of this project is to implement a robust, normalized relational schema that guarantees ACID compliance, enforces referential integrity constraints, maintains chain-of-custody logging via specimen tracking, and optimizes complex SQL queries for legal report compilation.

Database Architecture & Conceptual Design

The core of this system is designed around strict relational database principles to ensure minimal redundancy, high data integrity, explicit specialization via superclass/subclass inheritance, and structured query optimization.

Entity-Relationship Diagram

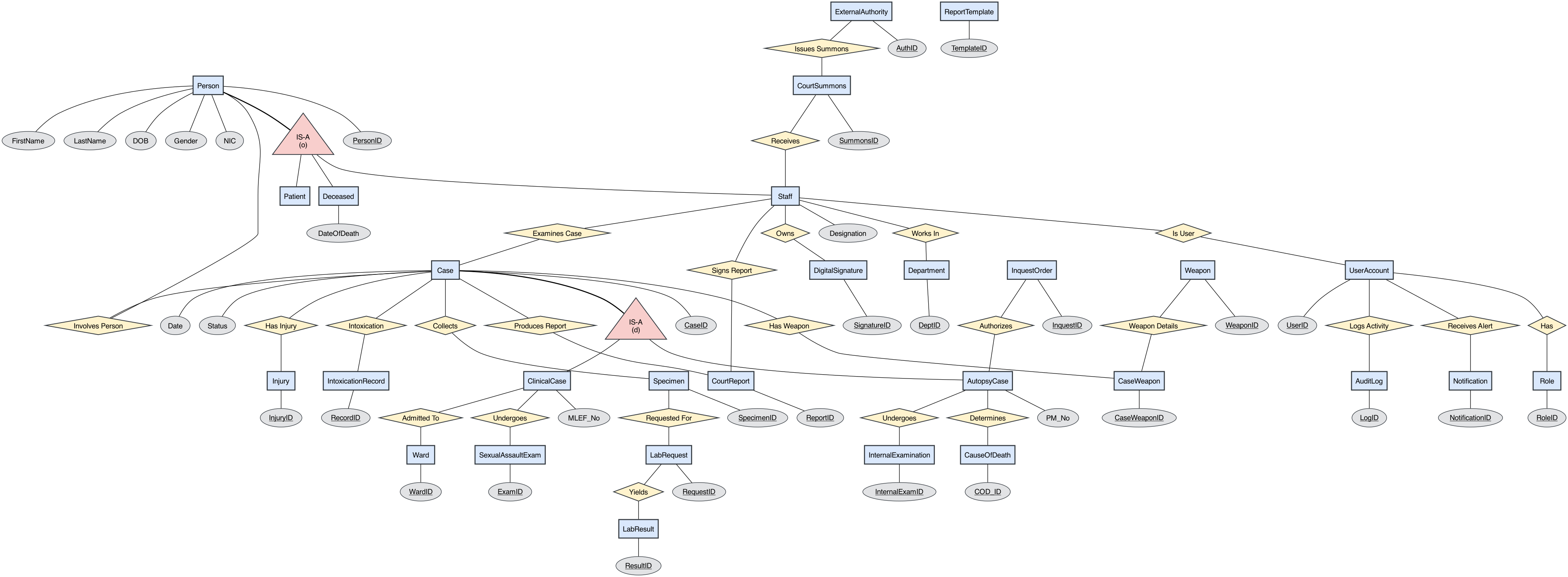

Figure 1 — Enhanced Entity-Relationship (EER) Diagram of the Forensic Database

Entity-Relationship Breakdown

The system schema utilizes Enhanced Entity-Relationship (EER) design patterns, incorporating superclass/subclass hierarchies for person demographics and forensic cases, alongside specialized examination entities:

Component Entity Name Primary Key Key Attributes & Foreign Key (FK) Links Operational Role
Person Inheritance (EER) Person (Superclass) PersonID FirstName, LastName, DOB, Gender, NIC Base superclass storing universal human demographic attributes.
  Patient (Subclass) PatientID PersonID (FK/PK), Address, EmergencyContact Subclass representing living clinical forensic patients.
  Deceased (Subclass) DeceasedID PersonID (FK/PK), DateOfDeath, TimeOfDeath Subclass representing deceased individuals for autopsy.
  Staff StaffID PersonID (FK), UserID (FK), DeptID (FK), FirstName, LastName, Designation Subclass representing department employees (JMOs, doctors, technicians).
Administration & Access Department DeptID DeptName, Location Stores organizational departments.
  Ward WardID Name, HospitalLocation Tracks hospital ward details for in-ward clinical referrals.
  UserAccount UserID RoleID (FK), Username, PasswordHash, IsActive Encapsulates system logins and active user status.
  Role RoleID RoleName, Permissions Stores Role-Based Access Control (RBAC) permission definitions.
  AuditLog LogID UserID (FK), Action, Timestamp Records audit trails for data security and compliance.
  Notification NotificationID UserID (FK), Message Generates system alerts for pending reports or court dates.
Case Inheritance (EER) Case_Table (Superclass) CaseID CaseDate, Status Superclass capturing universal case metadata.
  ClinicalCase (Subclass) ClinicalCaseID CaseID (FK/PK), PatientID (FK), JMO_StaffID (FK), WardID (FK), MLEF_No, AdmissionDate Subclass digitizing the Medico-Legal Examination Form (MLEF).
  AutopsyCase (Subclass) AutopsyCaseID CaseID (FK/PK), DeceasedID (FK), JMO_StaffID (FK), PM_No, PlaceOfDeath Subclass digitizing the Postmortem Report (PMR).
Specialized Examinations SexualAssaultExam ExamID ClinicalCaseID (FK), HymenStatus $1:1$ clinical extension capturing specific examination details for sexual assault cases.
  InternalExamination InternalExamID AutopsyCaseID (FK), HeadDetails, ThoraxDetails, AbdomenDetails Organ-by-organ internal autopsy findings.
  CauseOfDeath COD_ID AutopsyCaseID (FK), ImmediateCause, AntecedentCause Stores multi-level causes of death.
Legal & Authorities ExternalAuthority AuthID Name, Type, ContactInfo Stores details of courts, police stations, and external institutions.
  InquestOrder InquestID AutopsyCaseID (FK), AuthorityID (FK), CaseNumber, DateOfIssue Links Magistrate / Inquirer sudden death orders to autopsy cases.
  CourtSummons SummonsID StaffID (FK), AuthorityID (FK), CaseNo, RequiredDate Manages court summons dates for attending JMOs.
  CourtReport ReportID CaseID (FK), ReportType, SignedByStaffID (FK) Stores finalized MLR and PMR document records.
Evidence & Laboratory Injury InjuryID CaseID (FK), Type, Dimensions, Location Maps specific injuries (abrasions, fractures) on cases.
  IntoxicationRecord RecordID CaseID (FK), SubstanceType, Consumed Logs alcohol, drug, or poison screening findings.
  Specimen SpecimenID CaseID (FK), SpecimenType, CollectedDate Biological and physical sample chain of custody tracking.
  LabRequest RequestID SpecimenID (FK), TargetLabID (FK), Status Tracks laboratory investigation orders sent to external labs.
  LabResult ResultID RequestID (FK), ResultDetails, ReceivedDate Stores lab investigation findings received from testing centers.
  Weapon WeaponID Type, Description Master table storing weapon classifications.
  CaseWeapon CaseWeaponID CaseID (FK), WeaponID (FK), Details Bridge entity linking weapons involved in specific cases.

Conclusion

The Medico Forensic DBMS delivers a database infrastructure engineered for the Department of Forensic Medicine at Teaching Hospital Peradeniya. By shifting from paper registers to a normalized relational schema with explicit superclass/subclass inheritance, the system guarantees data integrity, preserves the chain of custody for specimens and weapons, enforces access control over sensitive records, and speeds up court report aggregation.

Key Architecture Achievements:
