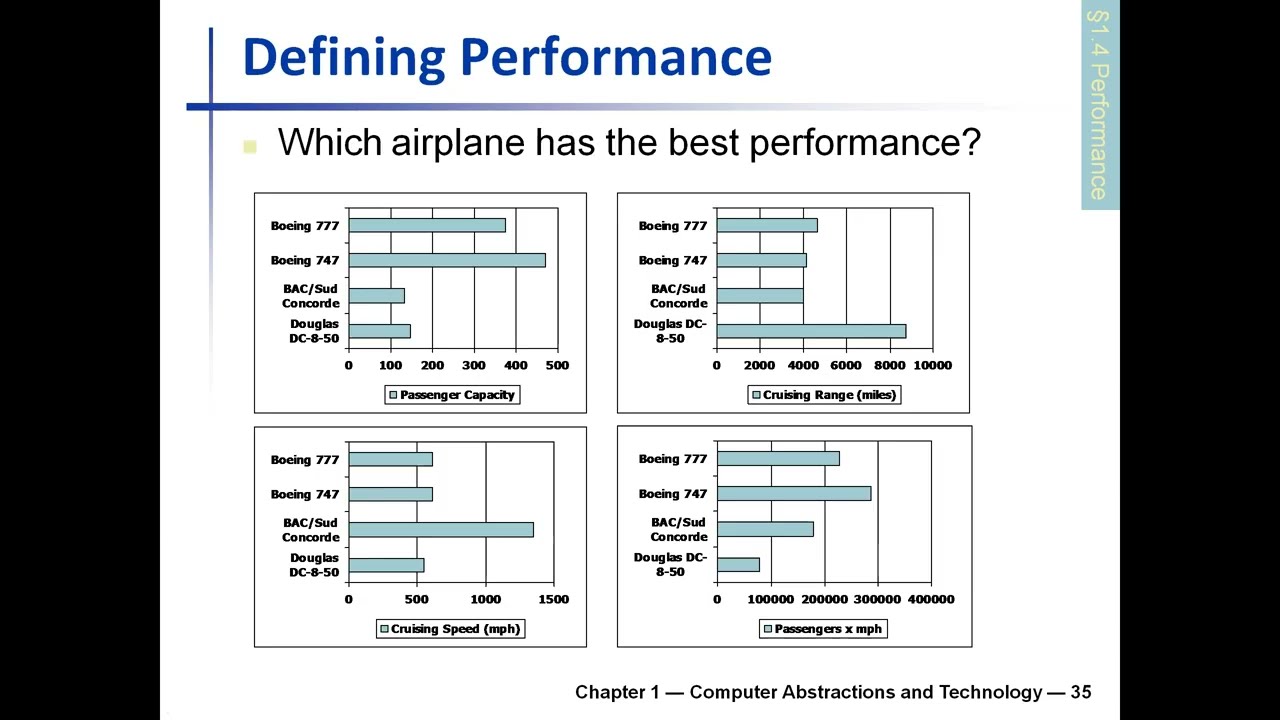

Click the thumbnail above to watch the video lecture on YouTube

By Dr. Isuru Nawinne

3.1 Introduction

Understanding computer performance is fundamental to computer architecture and system design. This lecture explores how performance is measured, the factors that influence it, and the principles that guide performance optimization. We examine the metrics used to evaluate systems, the mathematical relationships between performance factors, and Amdahl's Law—a critical principle for understanding the limits of performance improvements.

3.2 Defining and Measuring Performance

3.2.1 Response Time vs. Throughput

Response Time (Execution Time)

Time to complete a single task
Includes all overhead and waiting time
User-perceived performance metric
Example: Time for a program to run from start to finish

Throughput (Bandwidth)

Number of tasks completed per unit time
Measures system capacity
Important for servers and data centers
Example: Number of transactions processed per second

Relationship Between Metrics

Improving response time often improves throughput
Improving throughput doesn't always improve response time
Different optimization strategies for each metric
System design must balance both considerations

3.2.2 Performance Definition

Mathematical Definition

\text{Performance} = \frac{1}{\text{Execution Time}}

Performance Comparison

If System A is faster than System B:
- Execution Time_A < Execution Time_B
- Performance_A > Performance_B

Relative Performance

\frac{\text{Performance}_A}{\text{Performance}_B} = \frac{\text{Execution Time}_B}{\text{Execution Time}_A}

Example: If System A is 2× faster than System B:

Performance_A / Performance_B = 2
Execution Time_B / Execution Time_A = 2
System A takes half the time of System B

3.3 CPU Time and Performance Factors

3.3.1 Components of Execution Time

Total Execution Time

CPU time: Time CPU spends computing the task
I/O time: Time waiting for input/output operations
Other system activities: OS overhead, other programs

CPU Time Focus

Primary metric for processor performance
Excludes I/O and system effects
Directly reflects processor and memory system performance
Most relevant for comparing processor architectures

3.3.2 The CPU Time Equation

Basic Formula

\text{CPU Time} = \text{Clock Cycles} \times \text{Clock Period}

Or equivalently:

\text{CPU Time} = \frac{\text{Clock Cycles}}{\text{Clock Rate}}

Key Relationships

Clock Period = 1 / Clock Rate
Clock Rate measured in Hz (cycles/second)
Clock Cycles = total cycles to execute program
Higher clock rate → shorter clock period → faster execution

Example Calculation

Program requires 10 billion cycles
Processor runs at 4 GHz (4 × 10⁹ Hz)

\begin{align*} \text{CPU Time} &= \frac{10 \times 10^9 \text{ cycles}}{4 \times 10^9 \text{ cycles/sec}} \\ &= 2.5 \text{ seconds} \end{align*}

3.3.3 Instruction Count and CPI

Cycles Per Instruction (CPI)

Average number of clock cycles per instruction
Varies by instruction type and implementation
Key microarchitecture metric

Extended CPU Time Equation

\text{CPU Time} = \text{Instruction Count} \times \text{CPI} \times \text{Clock Period}

Or:

\text{CPU Time} = \frac{\text{Instruction Count} \times \text{CPI}}{\text{Clock Rate}}

Three Performance Factors

Instruction Count: Number of instructions executed
CPI: Average cycles per instruction
Clock Rate: Speed of the processor clock

Factor Dependencies

Instruction Count: Determined by algorithm, compiler, ISA
CPI: Determined by processor implementation (microarchitecture)
Clock Rate: Determined by hardware technology and organization

3.4 Understanding CPI in Detail

3.4.1 CPI Variability

Different Instructions, Different CPIs

Simple operations: May complete in 1 cycle (ADD, AND)
Memory operations: May take multiple cycles (LOAD, STORE)
Branch instructions: Variable cycles (depends on prediction)
Multiply/Divide: Often take many cycles

Calculating Average CPI

\text{Average CPI} = \frac{\sum (\text{CPI}_i \times \text{Instruction Count}_i)}{\text{Total Instruction Count}}

Where:

CPI_i = cycles per instruction for instruction type i
Instruction Count_i = number of times instruction i executed

3.4.2 CPI Example Calculation

Given:

Program executes 100,000 instructions
50,000 ALU operations (CPI = 1)
30,000 load instructions (CPI = 3)
20,000 branch instructions (CPI = 2)

Calculation:

\begin{align*} \text{Total Cycles} &= (50{,}000 \times 1) + (30{,}000 \times 3) + (20{,}000 \times 2) \\ &= 50{,}000 + 90{,}000 + 40{,}000 \\ &= 180{,}000 \text{ cycles} \end{align*}

\text{Average CPI} = \frac{180{,}000}{100{,}000} = 1.8

3.4.3 Instruction Classes

Common Instruction Categories

Integer arithmetic: ADD, SUB, AND, OR
Data transfer: LOAD, STORE
Control flow: BRANCH, JUMP, CALL
Floating-point: FADD, FMUL, FDIV

CPI Characteristics by Class

Integer arithmetic: Usually 1 cycle
Data transfer: 1-3 cycles (cache hit) or more (cache miss)
Control flow: 1-2 cycles (correct prediction) or more (misprediction)
Floating-point: 2-20+ cycles depending on operation

3.5 Performance Optimization Principles

3.5.1 Make the Common Case Fast

Core Principle

Optimize frequent operations rather than rare ones
Greater impact on overall performance
Focus resources where they matter most

Examples

Optimize ALU operations (common) over division (rare)
Fast cache for recent data (commonly accessed)
Branch prediction for likely paths
Simple instructions execute quickly

Application in Design

Identify common operations through profiling
Allocate hardware resources accordingly
Accept slower performance for rare cases
Trade-offs guided by usage patterns

3.5.2 Amdahl's Law

The Fundamental Principle

The speedup that can be achieved by improving a particular part of a system is limited by the fraction of time that part is used.

Mathematical Formula

\text{Speedup}_{\text{overall}} = \frac{1}{(1 - P) + \frac{P}{S}}

Where:

P = Proportion of execution time that can be improved
S = Speedup of the improved portion
(1 - P) = Proportion that cannot be improved

Alternative Formulation

\text{Execution Time}_{\text{new}} = \text{Execution Time}_{\text{old}} \times \left[(1 - P) + \frac{P}{S}\right]

3.5.3 Amdahl's Law Examples

Example 1: Multiply Operation Speedup

Given:

Multiply operations take 80% of execution time
New hardware makes multiplies 10× faster

Calculation:

P = 0.80 (80% can be improved)

S = 10 (10× speedup)

Speedup_overall = 1 / [(1 - 0.80) + (0.80 / 10)]

= 1 / [0.20 + 0.08]

= 1 / 0.28

= 3.57×

Key Insight: Despite 10× improvement in multiplies, overall speedup is only 3.57× because 20% of time is unaffected.

Example 2: Limited Improvement Fraction

Given:

Only 30% of execution can be improved
Improvement is 100× faster

Calculation:

P = 0.30

S = 100

Speedup_overall = 1 / [(1 - 0.30) + (0.30 / 100)]

= 1 / [0.70 + 0.003]

= 1 / 0.703

= 1.42×

Key Insight: Even with 100× improvement, overall speedup is only 1.42× because only 30% of execution benefits.

3.5.4 Implications of Amdahl's Law

Limitations of Parallelization

Serial portions limit parallel speedup
As parallelism increases, serial portion dominates
Cannot achieve infinite speedup regardless of cores

Optimization Strategy

Focus on largest contributors to execution time
Consider what fraction can realistically be improved
Multiple small improvements may beat one large improvement
Balance improvements across components

Example: Multicore Scaling

If 90% of program parallelizes perfectly:

Cores	Speedup
2 cores	1.82×
4 cores	3.08×
8 cores	4.71×
16 cores	6.40×
∞ cores	10.00× (maximum possible)

The 10% serial portion ultimately limits speedup to 10×.

3.6 Complete Performance Analysis

3.6.1 The Complete Performance Equation

Bringing It All Together

\text{CPU Time} = \text{Instruction Count} \times \text{CPI} \times \text{Clock Period}

Expanded:

\text{CPU Time} = (\text{Instructions}) \times \left(\frac{\text{Cycles}}{\text{Instruction}}\right) \times \left(\frac{\text{Seconds}}{\text{Cycle}}\right)

What Affects Each Factor

Instruction Count:

Algorithm: Efficient algorithms execute fewer instructions
Programming language: High-level vs low-level
Compiler: Optimization quality
ISA: Instruction complexity and capabilities

CPI:

ISA: Instruction complexity
Microarchitecture: Pipeline depth, branch prediction
Cache performance: Hit rates affect memory access CPI
Instruction mix: Distribution of instruction types

Clock Period (or Clock Rate):

Technology: Transistor speed (nm process)
Organization: Pipeline depth, critical path length
Power constraints: Higher frequency requires more power
Cooling limitations: Heat dissipation capacity

3.6.2 Performance Comparison Example

Scenario:

Compare two implementations of the same ISA

System A: Clock Rate = 2 GHz, CPI = 2.0
System B: Clock Rate = 3 GHz, CPI = 3.0
Same program with 1 million instructions

System A:

CPU Time_A = (1 × 10^6 instructions) × (2.0 cycles/instruction) / (2 × 10^9 cycles/sec)

= 2 × 10^6 cycles / (2 × 10^9 cycles/sec)

= 0.001 seconds = 1 millisecond

System B:

CPU Time_B = (1 × 10^6 instructions) × (3.0 cycles/instruction) / (3 × 10^9 cycles/sec)

= 3 × 10^6 cycles / (3 × 10^9 cycles/sec)

= 0.001 seconds = 1 millisecond

Result: Both systems have identical performance despite different clock rates and CPIs.

3.6.3 Trade-offs in Design

Clock Rate vs. CPI Trade-off

Higher clock rate may require deeper pipeline
Deeper pipeline often increases CPI (more stalls)
Must balance frequency gains against CPI losses

Instruction Count vs. CPI Trade-off

Complex instructions reduce instruction count
But complex instructions may increase CPI
CISC vs RISC architecture debate

Power vs. Performance

Higher clock rate increases power consumption
Power = Capacitance × Voltage² × Frequency
Mobile systems prioritize power over peak performance

3.7 Practical Performance Considerations

3.7.1 Benchmarking

Purpose of Benchmarks

Measure real-world performance
Compare different systems objectively
Standard workloads for reproducibility

Types of Benchmarks

Synthetic: Artificial programs (e.g., Dhrystone, Whetstone)
Application: Real programs (e.g., SPEC CPU, databases)
Workload: Representative task mixes

Benchmark Pitfalls

May not represent your workload
Can be optimized for unfairly
Need multiple benchmarks for complete picture

3.7.2 Performance Metrics in Practice

MIPS (Million Instructions Per Second)

\text{MIPS} = \frac{\text{Instruction Count}}{\text{Execution Time} \times 10^6} = \frac{\text{Clock Rate}}{\text{CPI} \times 10^6}

Limitations of MIPS:

Doesn't account for instruction complexity
Different ISAs have different instruction capabilities
Higher MIPS doesn't guarantee better performance
"Meaningless Indication of Processor Speed"

Better Metrics:

Execution time for specific workloads
Throughput for server applications
Energy efficiency (performance per watt)
Performance per dollar

3.7.3 Power and Energy Considerations

Power Wall

Cannot increase clock rate indefinitely
Power consumption limits frequency scaling
Led to multi-core era

Dynamic Power Equation

\text{Power} = \text{Capacitance} \times \text{Voltage}^2 \times \text{Frequency}

Energy Equation

\text{Energy} = \text{Power} \times \text{Time}

Implications:

Lowering voltage reduces power dramatically (squared effect)
Higher frequency increases power linearly
Faster execution may save energy overall (less time)
Energy efficiency increasingly important metric

Key Takeaways

Performance is the inverse of execution time - faster systems have shorter execution times and higher performance values.
Three key factors determine CPU performance:
- Instruction Count (algorithm, compiler, ISA)
- CPI (microarchitecture, instruction mix)
- Clock Rate (technology, organization)
Amdahl's Law limits speedup - the potential speedup from improving any part of a system is limited by how much time that part is used.
"Make the common case fast" - optimize frequently executed operations for maximum impact on overall performance.
CPI varies by instruction type - average CPI depends on the mix of instructions and their individual costs.
Trade-offs are fundamental - improvements in one area (e.g., clock rate) may harm another (e.g., CPI or power consumption).
Benchmarking is essential - real workloads provide the most meaningful performance measurements.
Power is a critical constraint - modern performance optimization must consider power and energy efficiency, not just speed.
Multiple factors must be optimized together - focusing on only one aspect (like clock rate) can be counterproductive.
Understanding performance equations enables rational design decisions and accurate performance predictions.

Summary

Performance analysis is central to computer architecture, providing the foundation for making informed design decisions. By understanding the relationship between instruction count, CPI, and clock rate, architects can identify optimization opportunities and predict the impact of changes. Amdahl's Law reminds us that the benefit of any improvement is constrained by what fraction of execution time it affects, emphasizing the importance of focusing on the common case. As we design systems, we must balance competing factors—clock rate, CPI, power consumption, and cost—to achieve the best overall performance for target applications. The principles covered in this lecture provide the analytical framework for evaluating processor designs and optimization strategies throughout the study of computer architecture.

← Previous Lecture Next Lecture →
